59.3. Call logs
Prev Chapter 59. OPC panel - End user manual Next

59.3. Call logs

This button opens the call logs window.

59.3.1. Call logs window

The default view shows the missed calls.

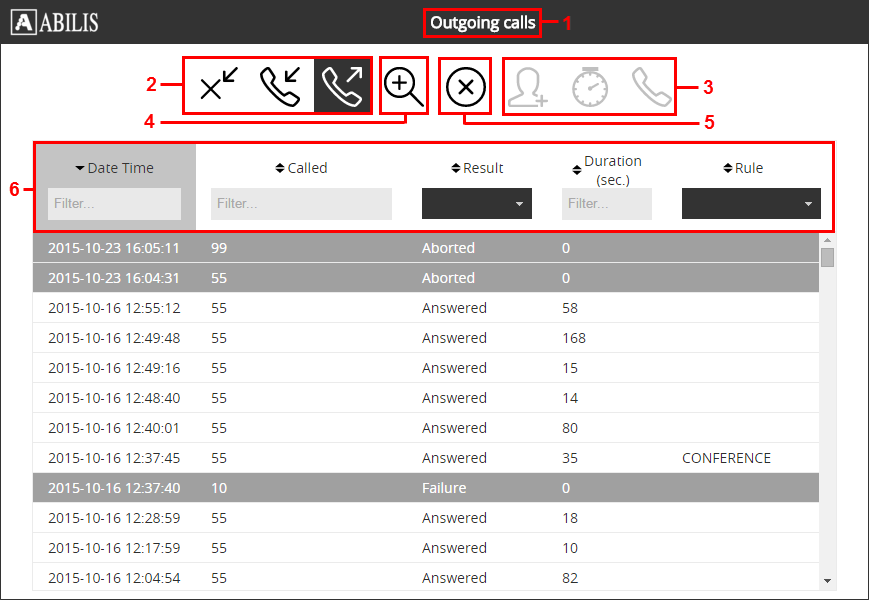

Figure 59.16. Call logs

Call logs

  1. Currently displayed log (outgoing, incoming, missed calls).

  2. Choose if show outgoing, incoming or missed calls.

  3. Link to some useful functions from the call section.

  4. Show an extended version of the table.

  5. Clear the currently visualized log.

  6. Sort and filter for each field. Hold SHIFT key to sort multiple columns.

Colors help you to identify the call's result:

  • White: The call has been successful.

  • Gray: All other call has been unsuccessful.

59.3.2. Icons and functions

Open the missed calls register.

Open the incoming calls register.

Open the outgoing calls register.

If you select a call, by clicking it, the following icons become available:

Add the selected number to the Address book.

Call-try the selected number.

Call the selected number.
