The User administration service allows to modify the profiles and the configurations of the PPP, FTP, HTTP, MAIL, IAX and SIP users.

	Caution
	Generally the access to this section is reserved for users with administrator's rights.

The anonymous access is disabled by default; add the path /sys/admin/users/ in the HTTP Virtual Paths Access Rights Table for httpuser.

[14:08:39] ABILIS_CPX:a http rights path:/sys/admin/users/ user:httpuser

COMMAND EXECUTED

[14:16:06] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
9 /sys/admin/
     httpuser                         r---  l---  NO     PLAIN,SSL
-------------------------------------------------------------------------------
10 /sys/admin/users/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
5 /sys/advuser/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
6 /sys/cp/
-------------------------------------------------------------------------------
4 /sys/disa/
     disa                             r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
3 /sys/opc/
     test                             r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------
8 /sys/sms/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
7 /sys/trfa/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------

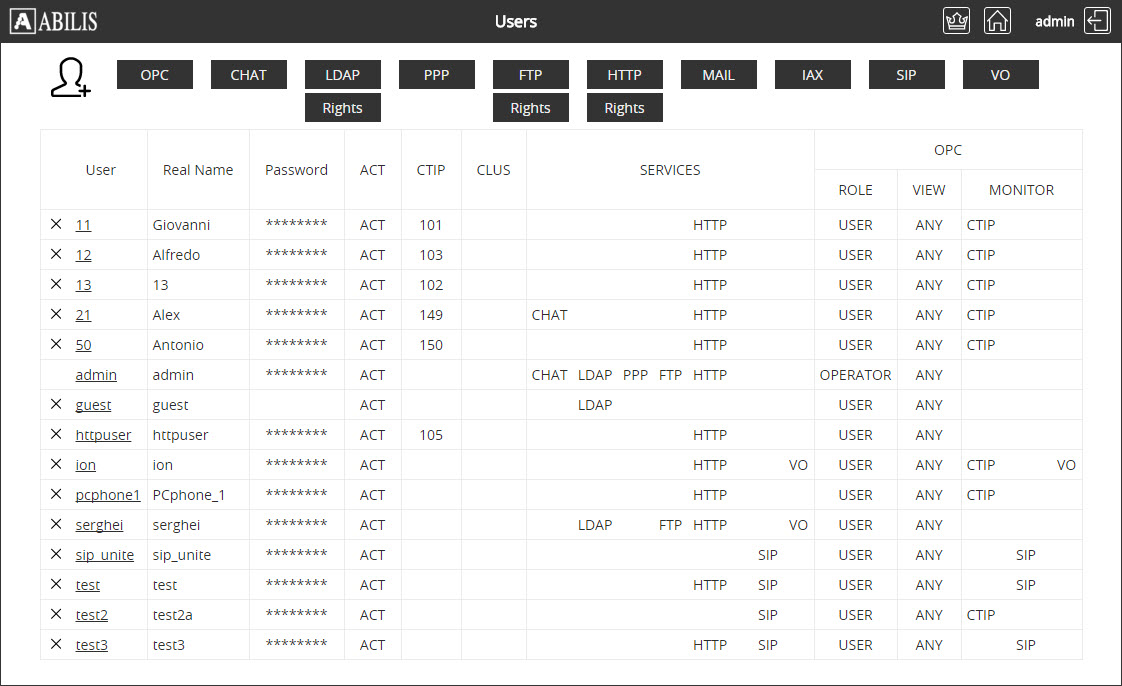

Go to Abilis Home page, log-in, go to Administration and select the Users link.

Users can be created, removed or modified (this operations are similar to typing d/a/c/s user command on the control port); Saving the configuration can be done pressing the Save configuration button.

	Tip
	Refer to Section 5.9, “Users Table” to know how to administrate users through CP.

60.1.1. Example of user creation

Let's see how to create a new IAX user.

In the previous page, click on button: this page will be shown.

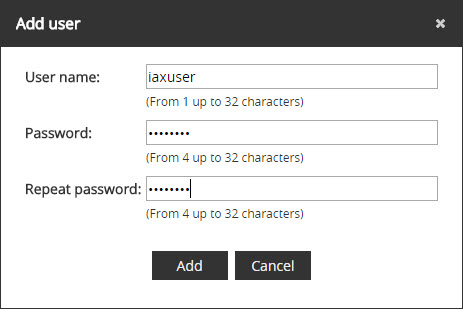

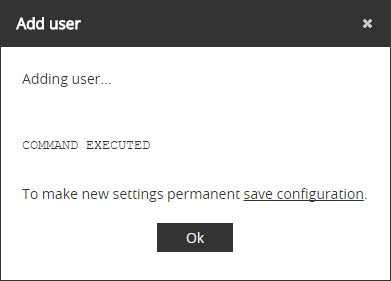

Insert the username and the password and click on Add button. The operation will be validated in this page:

The user has been added.

Select from the list the user that you want to modify (iaxuser in this case): the following page will be shown.

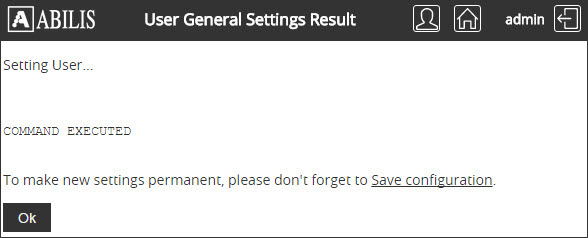

Select the protocol/s that you want to enable (in this case select IAX) and click on Submit button. The operation will be validated in this page.

Click on User Administration to come back to the starting page of the session.

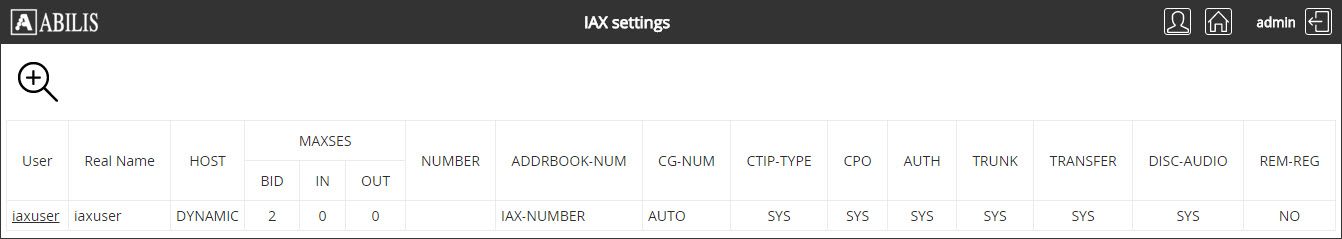

Click on IAX (in the Advanced user settings section): this page will be shown.

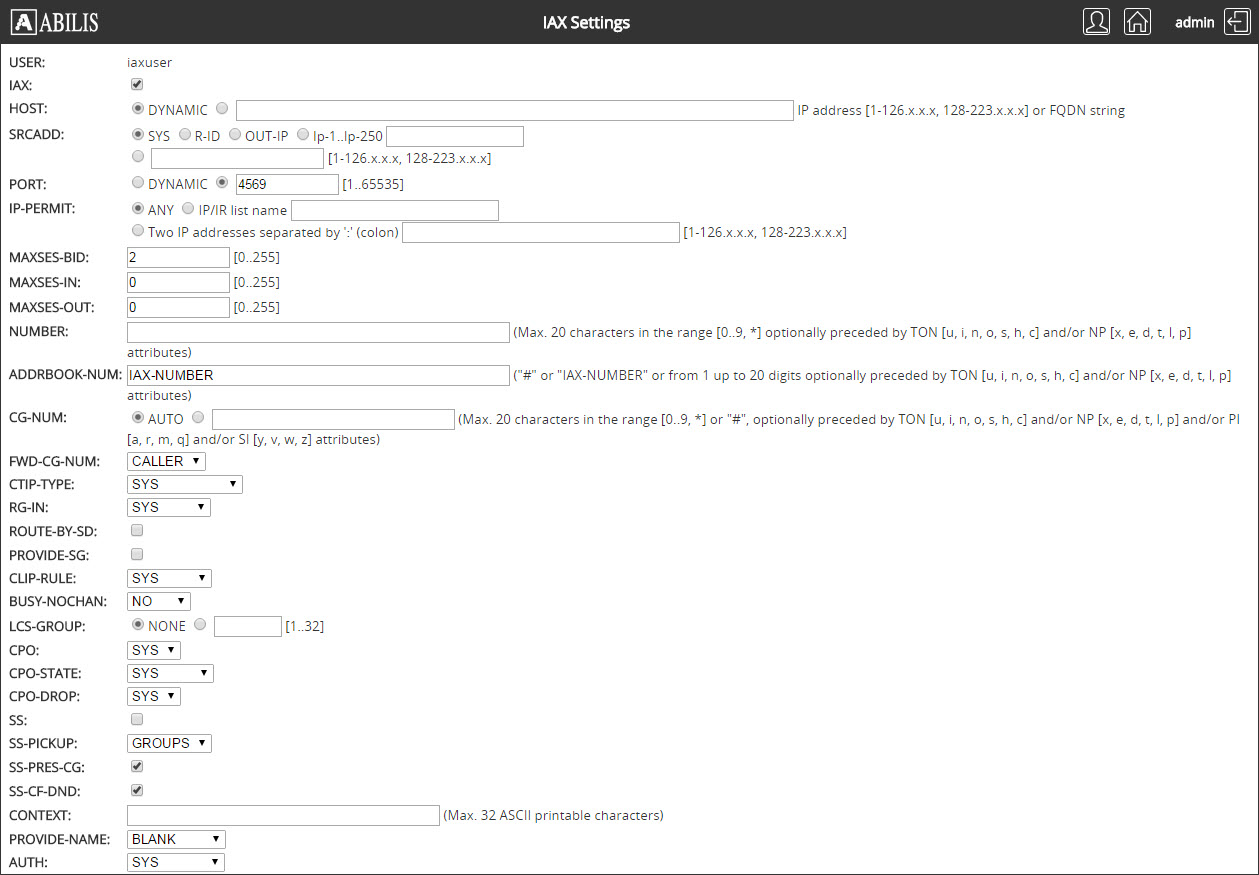

Select from the list the user to modify (iaxuser in this case): this page will be shown.

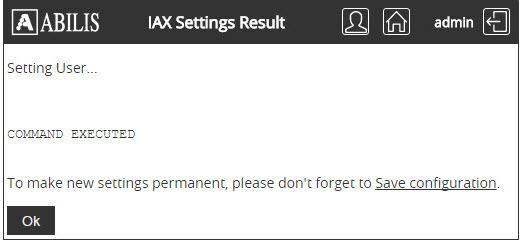

Set the field and click on the Submit button. The operation will be validated in this page.

Click on Users to come back to starting page of the session.

Click on Save configuration button to save the changes.

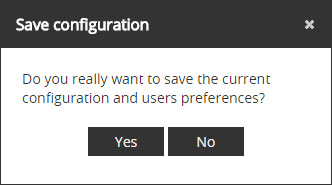

Click on Yes button to confirm.

	Tip
	Refer to Section 5.9, “Users Table” to know how to administrate users through CP.

60.1.2. Example of user deletion

Let's see how to delete a user.

Click on button on the User General Settings page.

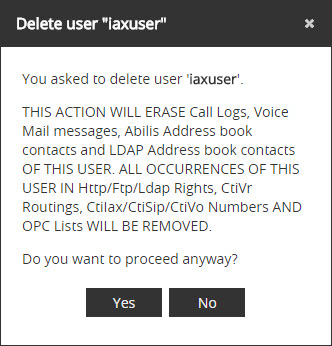

To confirm the user deletion click the Yes button.

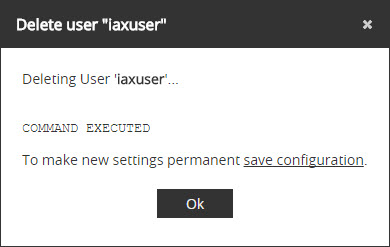

Click Ok.

Click Ok.

	Tip
	Remember to save the configuration to make the change permanent.

	Tip
	Refer to Section 5.9, “Users Table” to know how to administrate users through CP.

60.1.3. Example of user change

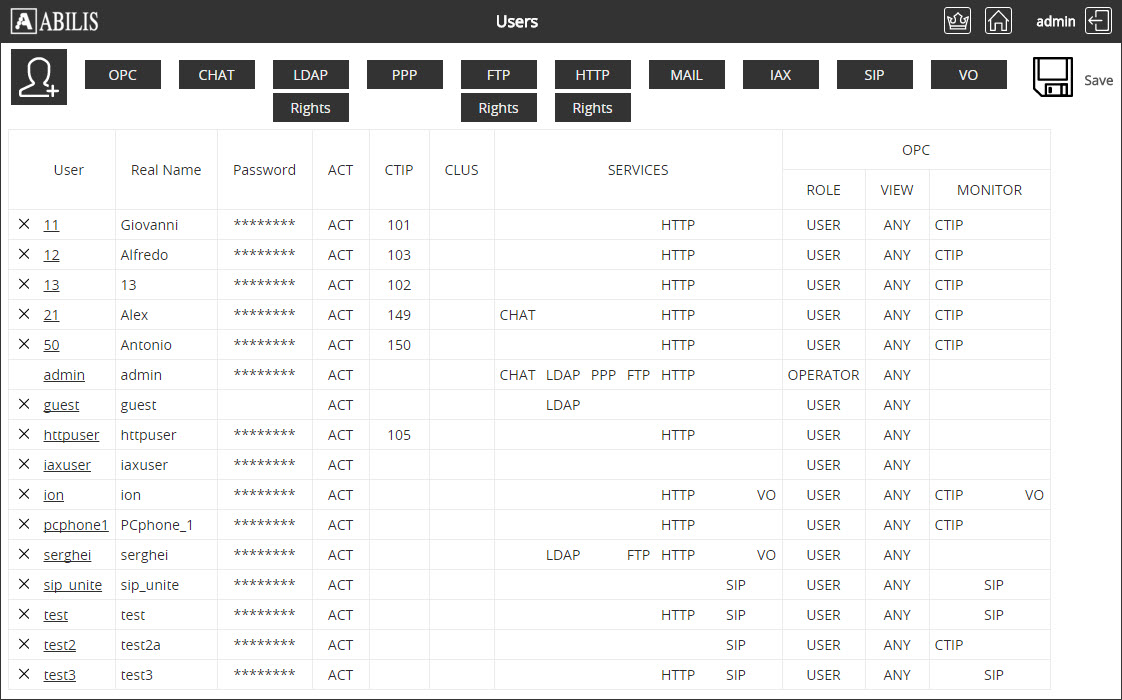

Click on the User Administration page. A list with all users is shown:

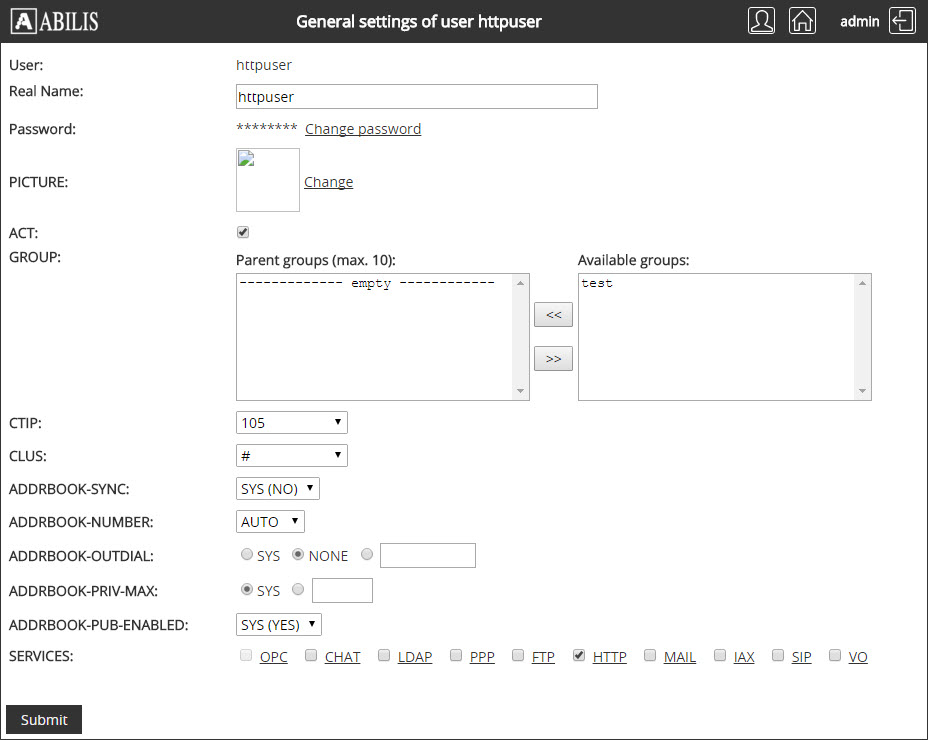

Click the user to change, for example httpuser:

Change parameters and click Submit button, click Ok on the following page:

	Tip
	Remember to save the configuration to make the change permanent.

	Tip
	Refer to Section 5.9, “Users Table” to know how to administrate users through CP.

60.1.4. Example - How to change advanced settings for a sip user

Click SIP on User administration page, a list of SIP users is shown.

Click the user to modify:

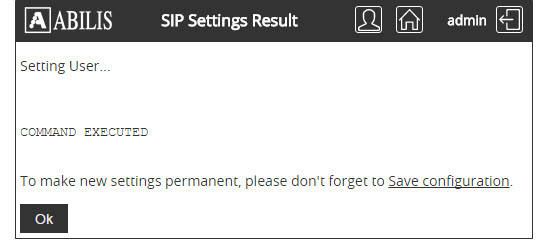

Change user's parameters and then click submit button. Click Ok button on the confirmation page:

	Tip
	Remember to save the configuration to make the change permanent.

60.1.5. Example - How to change assigned numbers

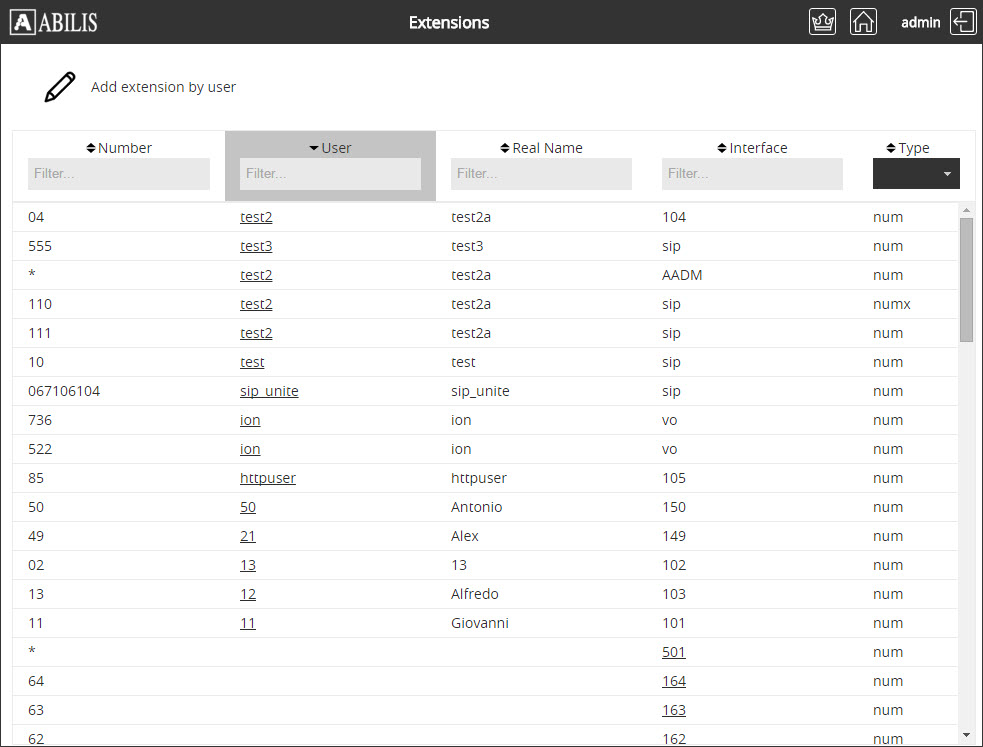

Click Extensions on the User Administration page. A list of users with their assigned numbers is shown:

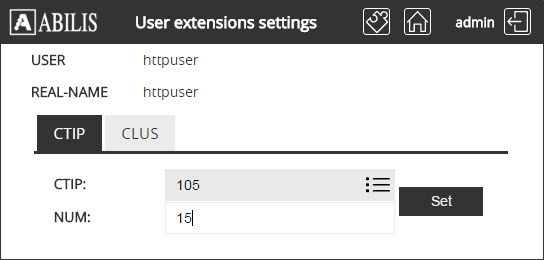

Click the user to modify, change the assigned number and then click Set button:

	Tip
	Remember to save the configuration to make the change permanent.

60.1.6. Example - How to give the http rights to a user through web interface

We want httpuser to access to the advanced user activities.

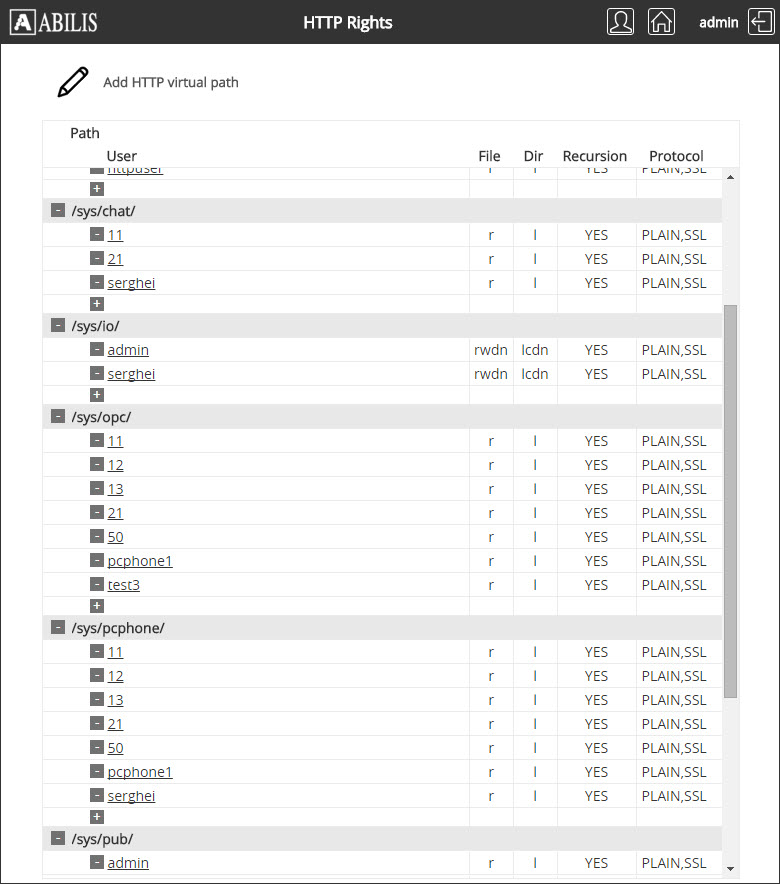

Click HTTP rights on the User administration page, the following table is shown:

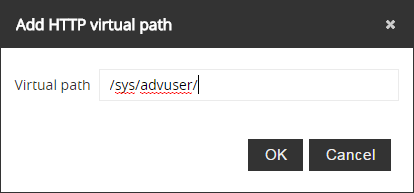

Click on button (Add HTTP virtual path), insert the virtual path (e.g. /sys/advuser/) and click OK.

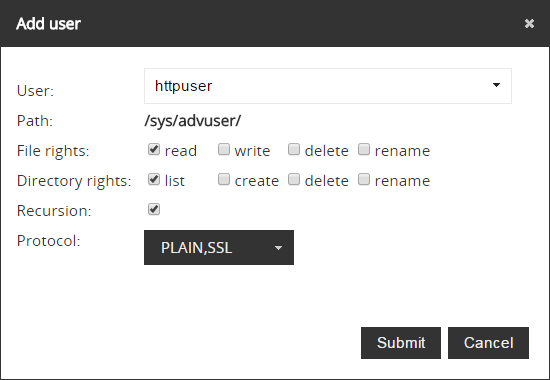

Click on , the following pop up window will be opened:

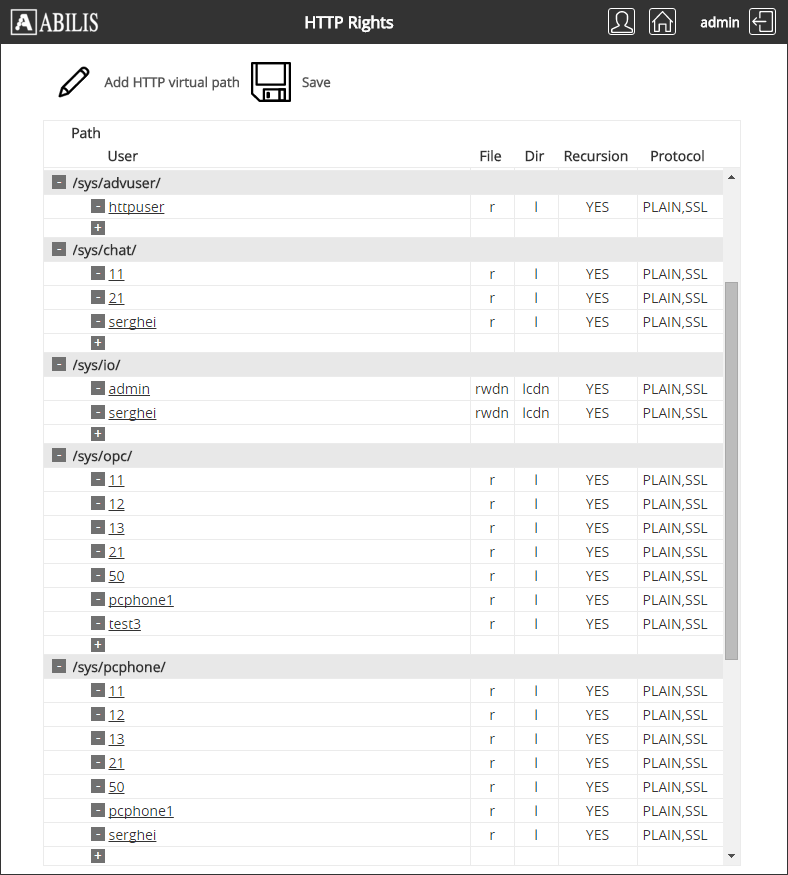

Fill the textbox with the username (or select it from the drop-down menu) and click on Submit. The httpuser has now the permission to access to advanced user activities.
