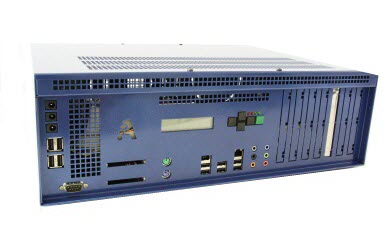

CPU QUAD Core Duo 3GHz;

2048 MB RAM DDR3;

2 Compact-Flash 512MB modules for boot;

1 Gigabit Ethernet;

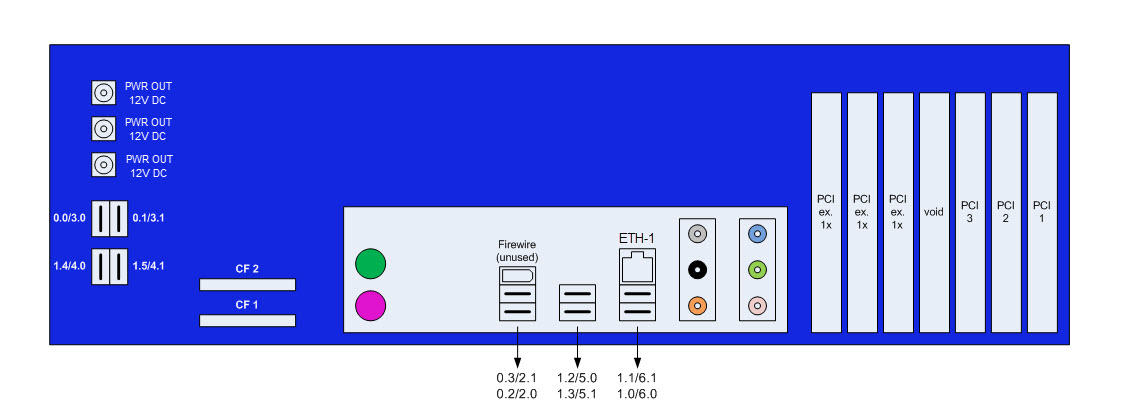

PC platform with 3 PCI and 3 PCI-Express;

2 RS-232 ports;

10 USB ports;

Watchdog LCD to display system parameters;

3 Power out connector useful to supply UMTS BOX2 or POTSBOX.

up to 12 ISDN2 or ISDN30 ports. Refer to the following chapters: Section 2.10.1, “QPRIX”, Section 2.10.3, “PB44X”, Section 2.10.6, “BRI-HFC4 / BRI-HFC8”, Section 2.10.2, “PB22”.

up to 48 analogue extensions (for “internal” telephones or fax). Refer to the following chapter: Section 2.10.7, “POTS 4/8/16”.

up to 384 analogue extensions (for “internal” telephones or fax). Refer to the following chapter: Section 2.10.10, “POTSHUB”.

up to 3 Ethernet ports. Refer to the following chapter: Section 2.10.11, “Ethernet”.

up to 24 Ethernet ports. Refer to the following chapter: Section 2.10.13, “QUAD-Ethernet”.

up to 3 Gigabit Ethernet ports. Refer to the following chapter: Section 2.10.12, “GigaEthernet”.

up to 10 xDSL concurrent connections to the Internet. Refer to the following chapter: Section 2.11.1, “ADSL modem”.

up to 10 UMTS gateways (up to 16 simultaneous calls between the fixed and the mobile network). Refer to the following chapter: Section 2.11.4, “UMTS-BOX2”.

up to two 5” 5200 RPM SATA Hard-Drives
