	Chapter 3. Physical connections

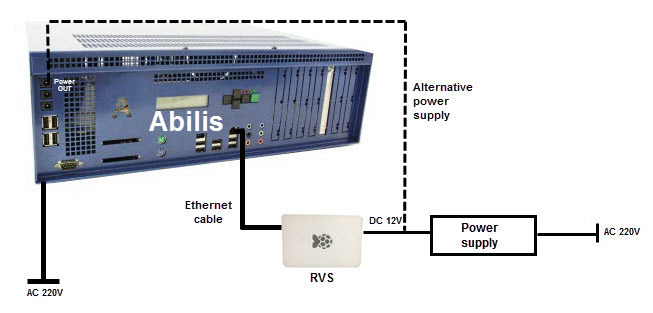

In this section it's shown how to connect an RVS to the Abilis CPX.

Follow the steps below to connect an RVS:

Power on Abilis;
Connect the RVS Ethernet port to Abilis Ethernet port using the Ethernet cable;
Connect the power supply to RVS;
There are two ways of connecting a power supply cable:
- From Power OUT port of Abilis.
- From External Power Supply.
Add/configure the RVS device.
Figure 3.25. RVS connection

In this section it's shown how to connect an RVS Digital Inputs/Outputs.

Figure 3.26. Pinout of RVS I/O board

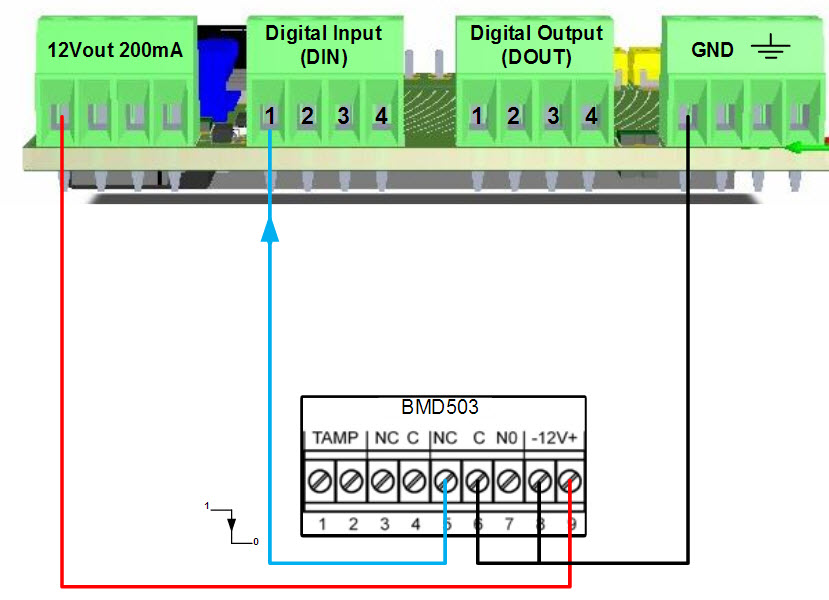

The following figure explains how to connect a motion sensor (BMD503) to Digital Input of RVS.

Figure 3.27. Example of DIN connection

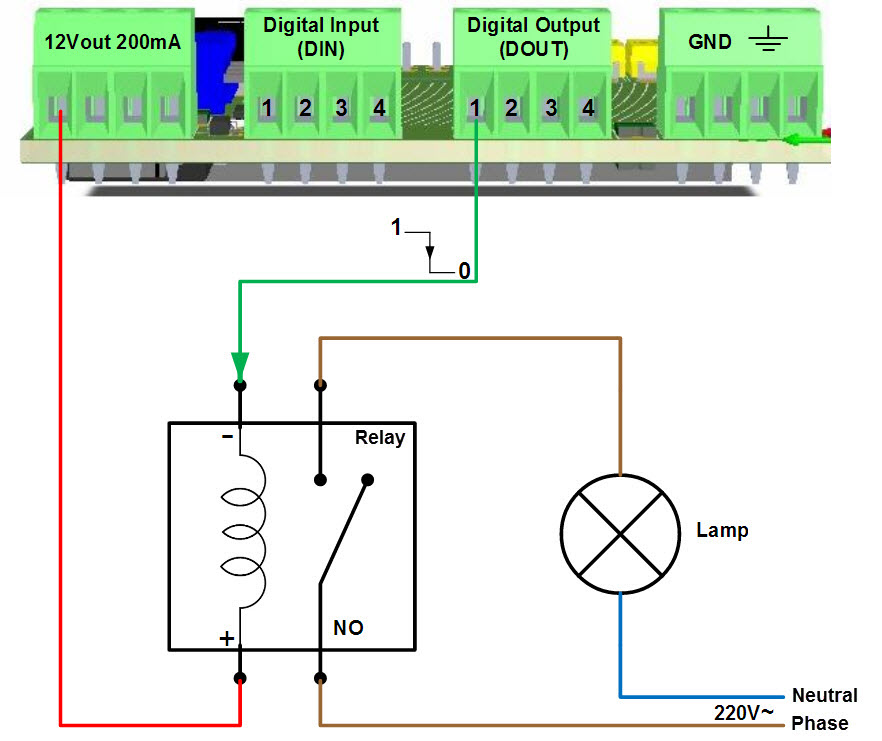

The following figure explains how to connect an external relay to Digital Output of RVS.

Figure 3.28. Example of DOUT connection

	Tip
Interesting chapters: Section 2.13.1, “RVS - Remote Video Surveillance”; Section 69.24, “Rio/Rvs configuration”; Section 18.3.3, “Activating the RVS device”; Chapter 53, VS - Video Surveillance; Section 78.2.1, “Example of LUA Script to pilot digital outputs of RIO device”; Section 69.20, “Videorecorder”.
