3.13. RIO connection
	Chapter 3. Physical connections

In this section it's shown how to connect a RIO to the Abilis CPX.

Follow the steps below to connect a RIO:

Power on Abilis;
Connect the RIO Ethernet port to Abilis Ethernet port using the Ethernet cable;
Connect the power supply to RIO;
There are two ways of connecting a power supply cable:
- From Power OUT port of Abilis.
- From External Power Supply.
Add/configure the RIO device.

In this section it's shown how to connect a RIO Inputs/Outputs.

Figure 3.29. Pinout of RIO I/O board

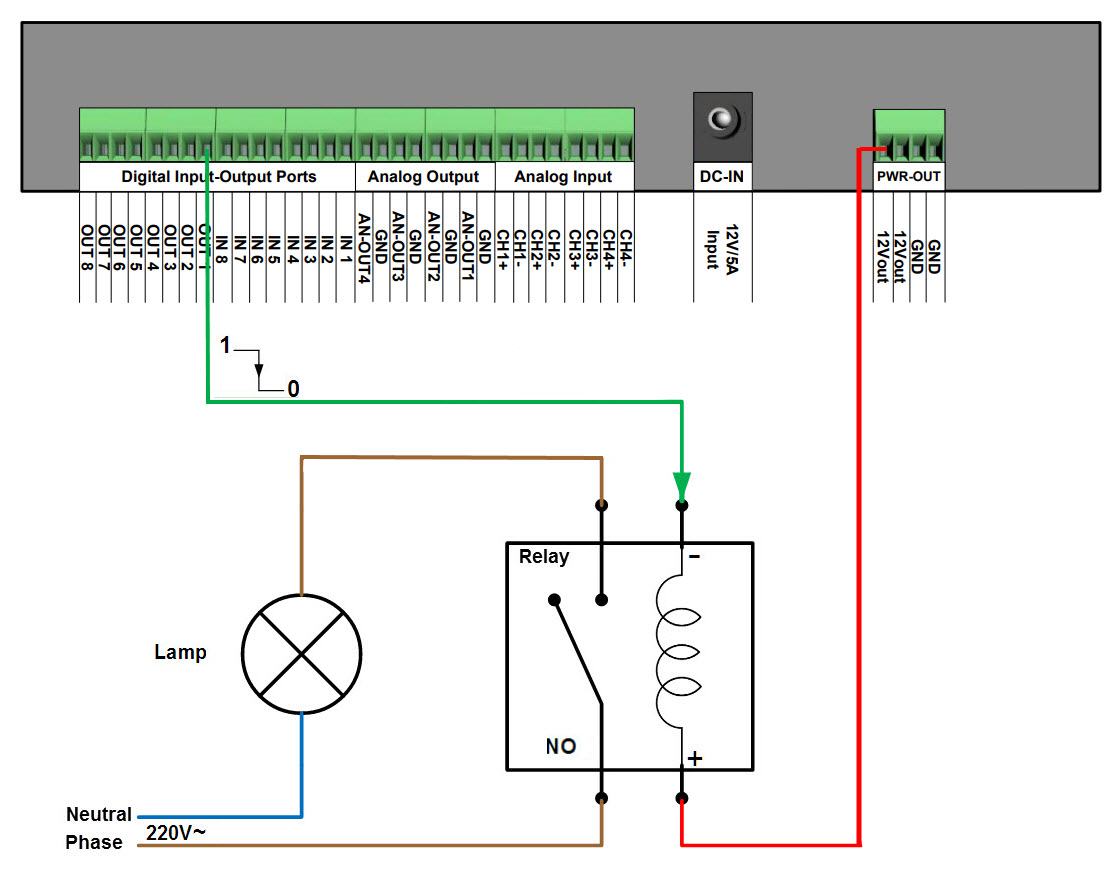

The following figure explains how to connect an external relay to Digital Output of RIO.

Figure 3.30. Example of DOUT connection

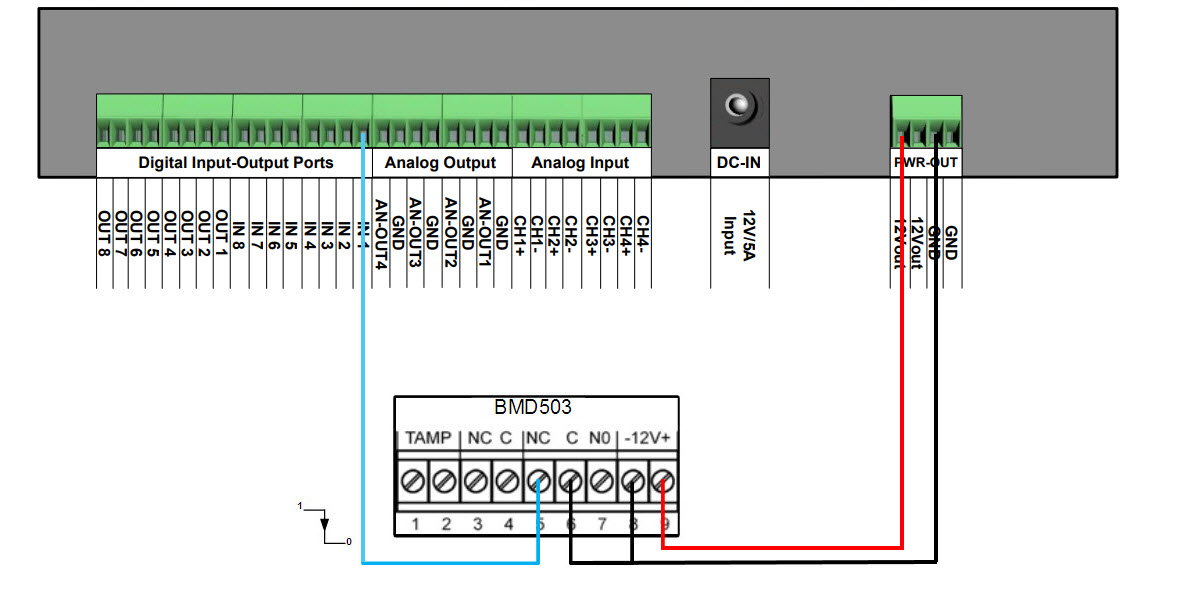

The following figure explains how to connect a motion sensor (BMD503) to Digital Input of RIO.

Figure 3.31. Example of DIN connection

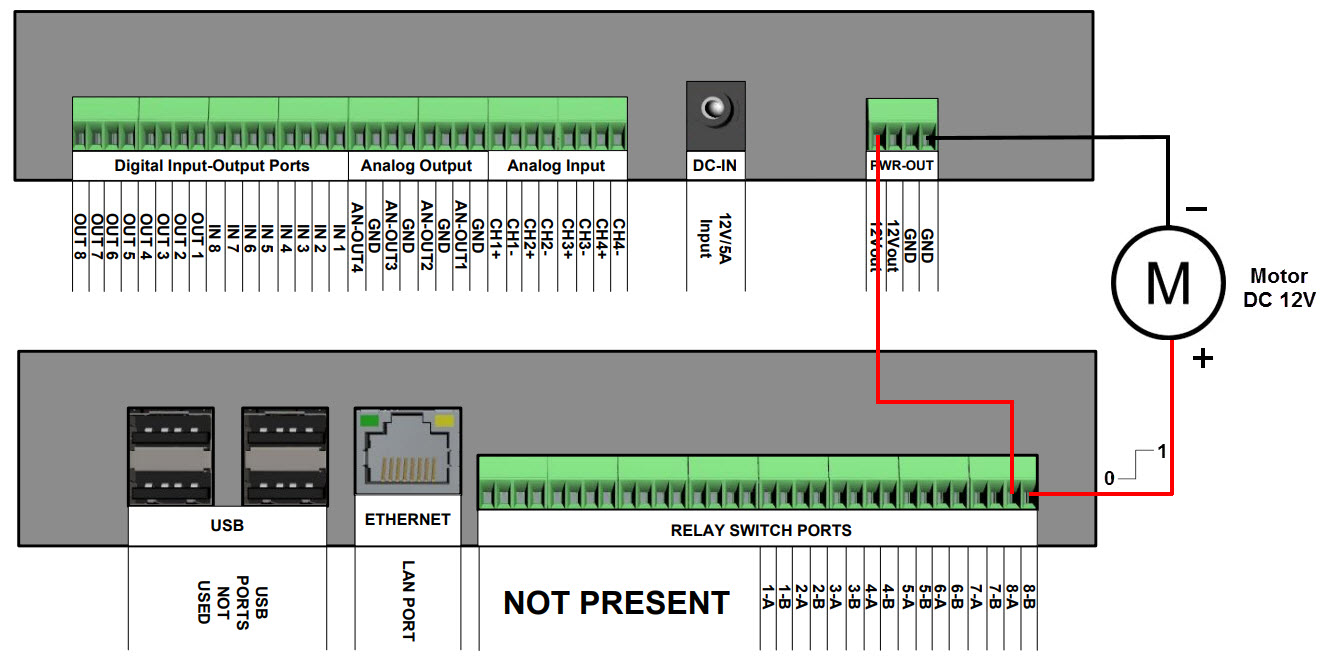

The following figure explains how to connect a 12V DC motor to Relay Switch Port of RIO.

Figure 3.32. Example of Relay Switch Port connection

By enabling the digital output D-OUT-8 (ON), a contact is closed that short-circuits the respective 8-A and 8-B pins.

	Tip
Interesting chapters: Section 2.13.2, “RIO - Remote I/O”; Section 18.3.4, “Activating the RIO device”; Section 78.2.1, “Example of LUA Script to pilot digital outputs of RIO device”; Section 69.24, “Rio/Rvs configuration”.

Tip

Interesting chapters:

In this section it's shown how to connect a RIO Sonoff Inputs/Outputs.

The following figure explains how to connect a lamp to Digital Output of RIO Sonoff Basic.
