This section allows to add/remove/change services and users, to display diagnostics and to manage messages sets.

	Caution
	Generally the access to this section is reserved to users with administrator's rights.

By default, the anonymous access is disabled; add the path in the HTTP Virtual Paths Access Rights Table for httpuser.

[10:49:09] ABILIS_CPX:a http rights path:/sys/admin/disa/ user:httpuser

COMMAND EXECUTED

[10:49:14] ABILIS_CPX:d http rights

- Not Saved (SAVE CONF) -------------------------------------------------------
-------------------------------------------------------------------------------
ID: PATH:
     USER:                            FILE: DIR:  RECUR: PROT:
-------------------------------------------------------------------------------
1 /sys/
     admin                            r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
9 /sys/admin/
     httpuser                         r---  l---  NO     PLAIN,SSL
-------------------------------------------------------------------------------
 11 /sys/admin/disa/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
6 /sys/admin/lists/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
10 /sys/admin/users/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
5 /sys/advuser/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
4 /sys/disa/
     disa                             r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
3 /sys/opc/
     test                             r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
2 /sys/pub/
     anonymous                        r---  ----  YES    PLAIN,SSL
-------------------------------------------------------------------------------
8 /sys/sms/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------
7 /sys/trfa/
     httpuser                         r---  l---  YES    PLAIN,SSL
-------------------------------------------------------------------------------

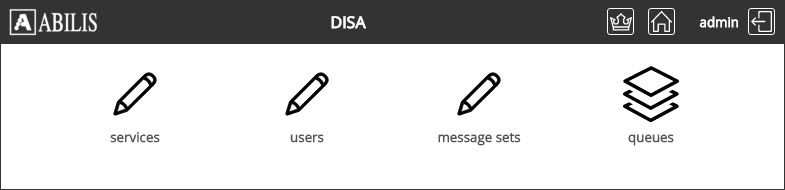

Click Login on the CPX home page and insert login and password. Go to Administration and select the DISA link to access to the following page.

	Tip
	Interesting part: Chapter 59, DISA - Direct Inward System Access.

69.12.1. Example of service creation

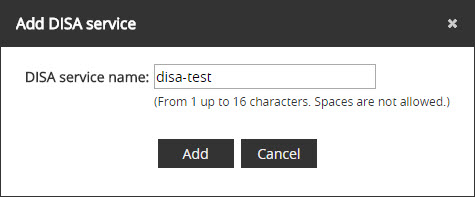

Click on button (Add DISA service), insert the DISA service name (e.g. disa-test) and click Add button.

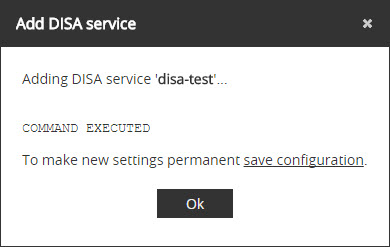

The following page confirms the change. Click Ok button.

	Tip
	Remember to save the configuration to make the change permanent.

	Tip
	Interesting part: Section 59.3.1, “CTIDISA Service table”.

69.12.2. Example of service deletion

Click to remove a service.

Click YES button to confirm.

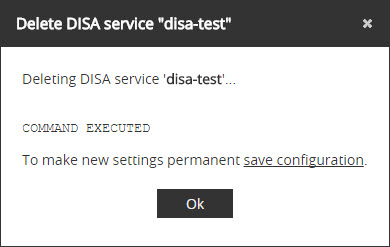

This is the confirmation page:

	Tip
	Remember to save the configuration to make the change permanent.

	Tip
	Interesting part: Section 59.3.1, “CTIDISA Service table”.

69.12.3. Viewing/changing a service

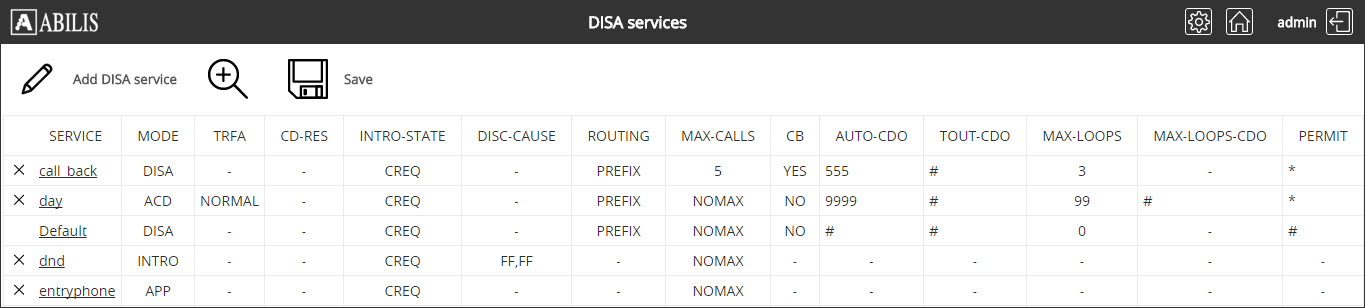

Click the service to change.

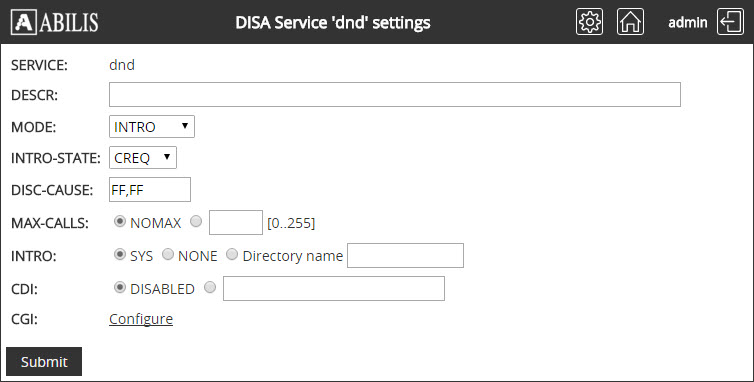

Set new parameters and click Submit button.

Click Ok button on confirmation page.

Click Back button on the following page.

	Tip
	Interesting part: Section 59.3.1, “CTIDISA Service table”.

69.12.4. Example of user creation

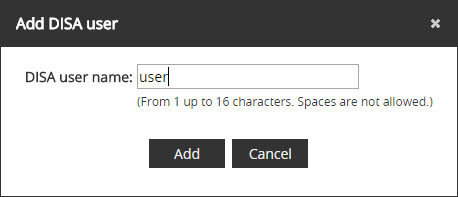

Click on button (Add DISA user), Insert the user name and click Add button to add a new user.

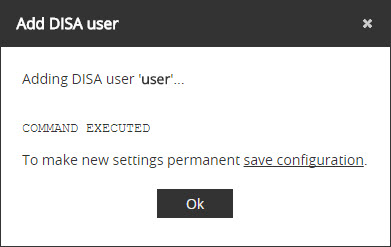

Click Ok on the confirmation page.

	Tip
	Remember to save the configuration.

	Tip
	Interesting part: Section 59.3.2, “CTIDISA User table”.

69.12.5. Example of user deletion

Click on the DISA administration page to remove a user.

Click Yes button to confirm the deletion.

Click Ok on the confirmation page.

	Tip
	Remember to save the configuration.

	Tip
	Interesting part: Section 59.3.2, “CTIDISA User table”.

69.12.6. View/change users

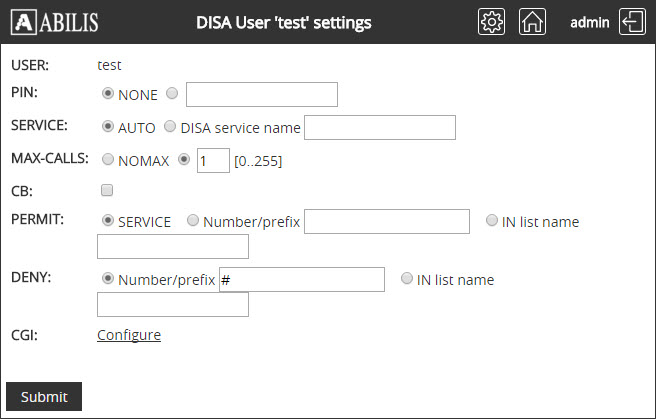

Click the user to change.

Set parameters as needed and click Submit button.

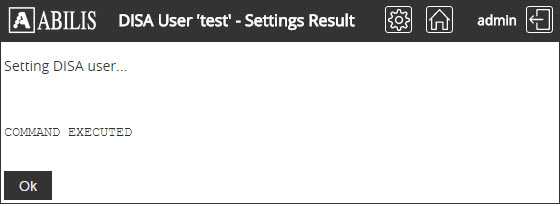

Click Ok button on the confirmation page.

	Tip
	Remember to save the configuration.

	Tip
	Interesting part: Section 59.3.2, “CTIDISA User table”.

69.12.7. Managing messages sets

This page allows to Extract/Rebuild/Update messages sets used by CTIDISA resource.

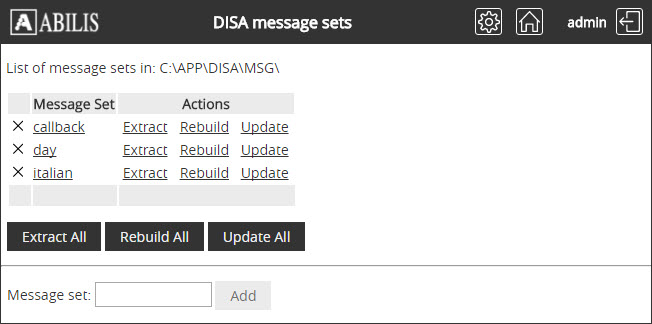

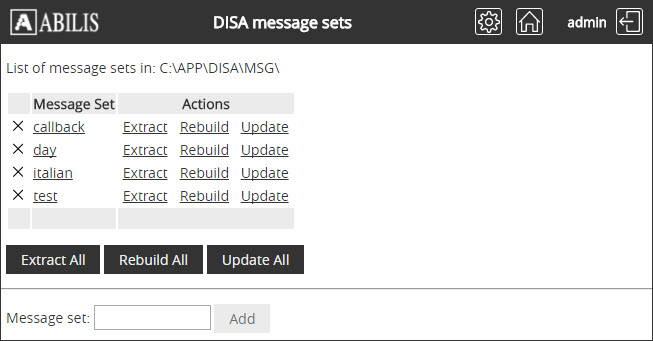

Click "DISA message sets" to view the list of existing messages sets.

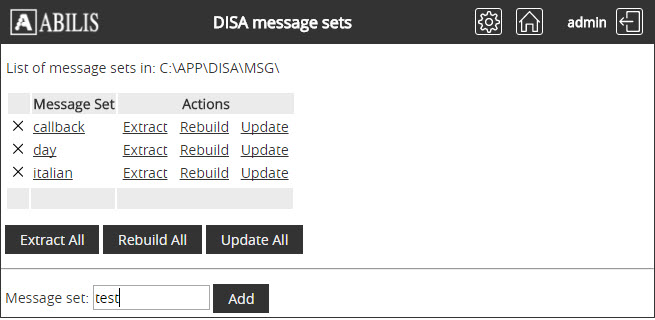

To add new name of the message group insert the message set name in the textbox and click the Add button.

The new message set was added.

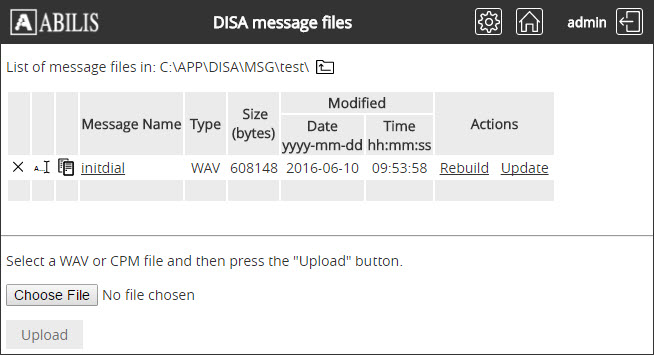

Click the message set name to add/change a message. Message files must be recorded on a PC and saved in WAV format.

	Important
	Filenames are predefined for the event correlated to the message, please refer to: Section 59.8, “Message files”.

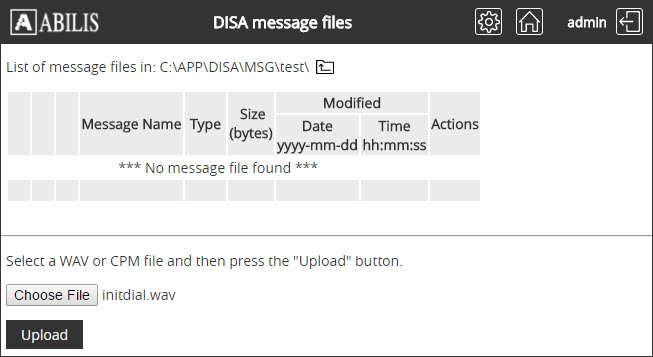

Select the file to use and click Upload button.

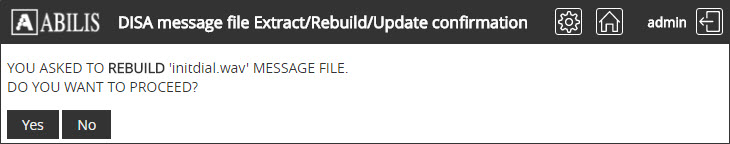

Click Yes on the confirmation page.

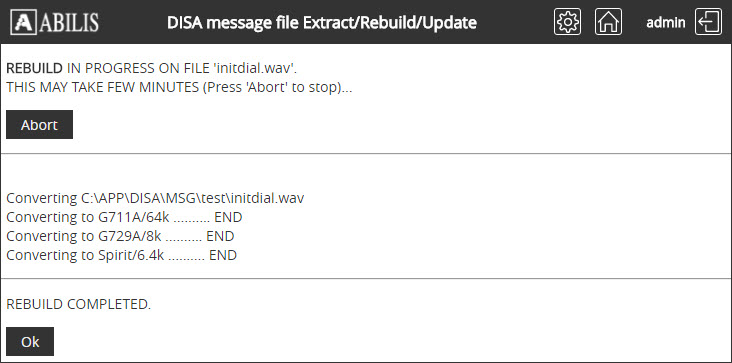

Click Ok button when the conversion is accomplished.

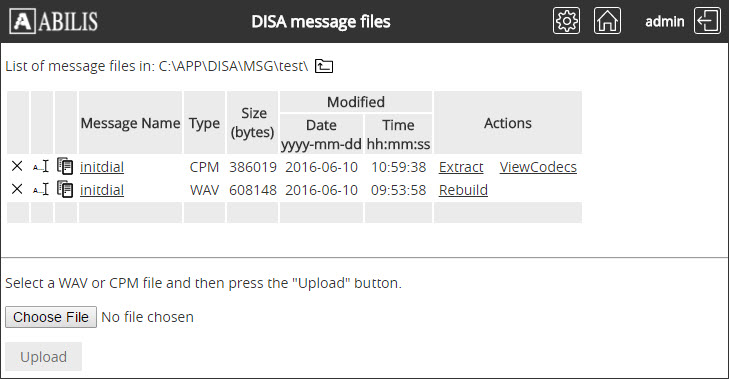

The CPM file is now present.

	Important
	Filenames are predefined for the event correlated to the message, please refer to: Section 59.8, “Message files”.

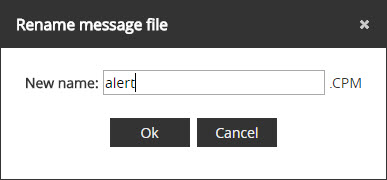

To change the filename click the Rename button. Insert the new filename in the textbox and click the Ok button.

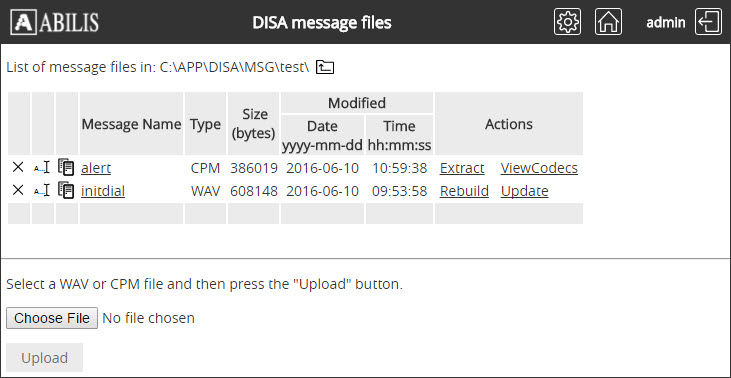

The filename was renamed.
