	Chapter 86. Abilisphone - End user manual

86.4. Phone - main page

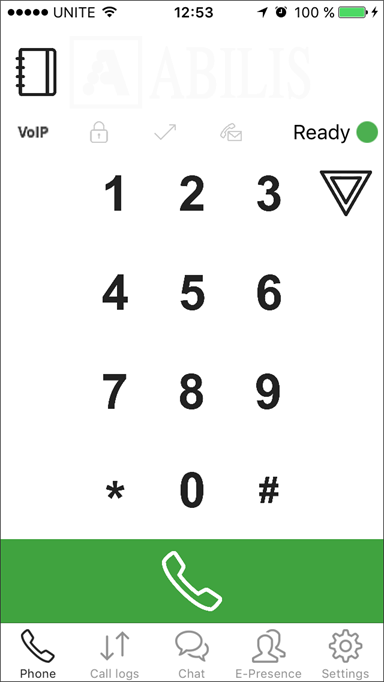

Figure 86.4. Phone - main page

Phone - main page

The main page of the application that allow the user:

Accessing the Address book - Click button to open the Address book.

Dialling a number - Dialling a number with AUTO or MANUAL mode, please refer to: Section 86.9, “Outgoing calls”.
Managing the call - Icons for call management like precedence button.
Note
Other icons are active only during a call, or when the call is on hold, please refer to: Section 86.11, “During the call”.

Checking connection status and activated preferences on status bar.
Figure 86.5. Status bar
- VoIP - Is active when the VoIP part is activated.
- - Is active when Encryption is enabled.
- - Is active when Forward rules are activated or is active when Do Not Disturb is activated.
- - Is active when Voice Mail is enabled.
- Connection status:
  - - Ready.
  - - Cell only, no Internet connection.
  - - Cell only, searching Internet connection.

86.4.1. Address book

On the main page, click button to open the Address book.

The Contacts page shows the list of contacts in Abilis address book, it is possible to filter via the text box on the upper side of the page.

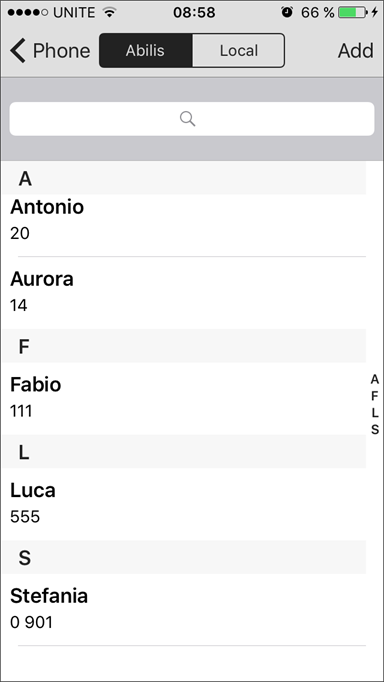

Figure 86.6. Abilis Contacts

Abilis Contacts

This page will provide the possibility also to view Local phone address book. Click the Local button.

Figure 86.7. Local phone contacts

Local phone contacts
