90.5. iPhone/iPad native IPsec VPN client with IKEv2 Mode

90.5. iPhone/iPad native IPsec VPN client with IKEv2 Mode
	Chapter 90. IPsec clients

90.5.1. Checklist of parameters

This table show the parameters of iPhone/iPad native IKEv2 and their corresponding parameters in Abilis configuration. The information must be inserted in a “mirror” way: i.e. “LOCAL” information for Abilis are “REMOTE” for IKEv2 VPN client and vice versa.

Table 90.6. Checklist of parameters

The iPhone/iPad native IKEv2 parameter	Abilis IKE Table	Abilis IKE Table parameter
Server	HOST	`LOC-IP`
Remote ID	HOST	`ID`
Local ID	HOST	`PEER-ID`
Secret	PSK	`KEY`

90.5.2. Configuring iPhone/iPad native IKEv2 VPN client

Please enter the following commands to configure the VPN in Abilis. Refer to Section 83.19.1, “How to configure a RAS using IPSEC VPN server” to for the configuration of IPsec and IKE resources.

[14:51:53] ABILIS_CPX:a ike host:1 mode:ike2 locip:80.80.80.80 remip:* side:inside hash:sha256 id-type:FQDN id:abilis peer-id-type:FQDN peer-id:iphone name:iPhone_IKE2

COMMAND EXECUTED

[14:55:35] ABILIS_CPX:a ike cli:1 host:1 net-loc:0.0.0.0/0 net-rem:10.0.2.1/32 pfs:no esp-auth:sha256 name:iPhone_IKE2_Cli

COMMAND EXECUTED

[14:55:44] ABILIS_CPX:a ike psk:1 key:24iphone20ike2pskey$ peer-id-type:fqdn peer-id:iphone

COMMAND EXECUTED

	Caution
	To activate the changes made, execute the initialization command init res:ike.

To view the configuration made above, use the following commands.

[14:57:49] ABILIS_CPX:d ike host:1 -cli

-------------------------------------------------------------------------------
HOST: NAME:                              LIFETIME:  HASH:     DPD:    DPD-ACTION:
      LOCIP:          NATT:   MODE:      MODE-CFG:  DH:               DPD-DELAY:
      REMIP:          SIDE:   AUTH:      AUTH2:     CIPHER:   SA-TRY: DPD-TOUT:
      AUTH2-USER:                        AUTH2-PWD:
      -- ID -------------------------------------------------------------------
      ID-TYPE:        IP:/ID:
      PEER-ID-TYPE:   PEER-IP:/PEER-ID:
      -- RSA Cert -------------------------------------------------------------
      CERT-SEND:      ASN1-DN:
      CERT-PEER:      PEER-ASN1-DN:
      CERT-VERIFY:
-------------------------------------------------------------------------------
1     iphone_IKE2                        3600       SHA256    YES     STOP
      080.080.080.080 YES     IKE2                  MODP2048          30
      *               INSIDE  PSK        NO         AES256    3       120
      -- ID -------------------------------------------------------------------
      FQDN            abilis
      FQDN            iphone
-------------------------------------------------------------------------------

IKE Clients:

-------------------------------------------------------------------------------
CLI:  NAME:                                LIFETIME: ESP:        AH:
HOST: NET-LOC:           RULE:  PASSIVE:   PFS:      ESP-AUTH:   AH-AUTH:
      NET-REM:                  PERMANENT: TUNNEL:   ESP-CIPHER: MODE-CFG-DNS:
-------------------------------------------------------------------------------
1     iPhone_IKE2_Cli                      28800     YES         NO
1     000.000.000.000/00 IPSEC  YES        NO        SHA256      SHA1
      010.000.002.001/32        YES        YES       AES256      SYS
-------------------------------------------------------------------------------

[14:57:52] ABILIS_CPX:d ike psk:1

-------------------------------------------------------------------------------
PSK: KEY:     PEER-ID-TYPE:  PEER-IP:/PEER-ID:
-------------------------------------------------------------------------------
1    ******** FQDN           iphone

To configure an Apple iOS device for IPsec VPN connection with Abilis:

Click the Settings icon on your iOS device.
Then click General:
Click VPN:
Now click Add VPN Configuration:

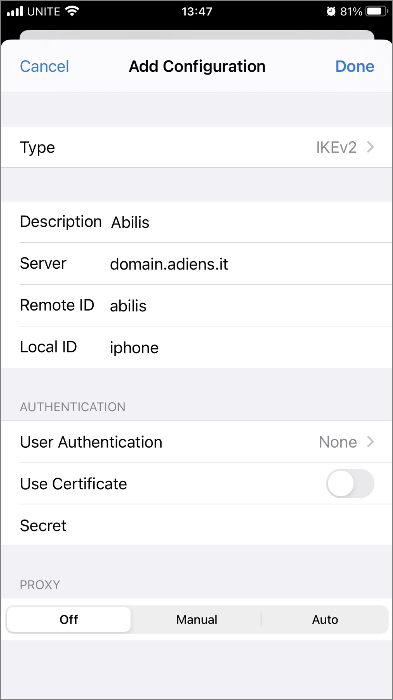

Now enter the configuration parameters:
Click Done in the upper-right corner and you should now see this screen:
Click the Not Connected slider button and wait for it say Connected. The VPN icon appears in the status bar to indicate that the connection is successful.
In the future, you can turn the VPN on/off very quickly by simply going to Settings > VPN and toggling the slider button.
Tip
Interesting chapters:
Section 83.19.2, “How to configure a RAS using IPSEC VPN server with iPhone/iPad or Mac”;
Section 50.6, “Aggressive Mode: Example of IPSEC configuration”.
