90.6. Android native VPN Client with IKEv2 Mode

90.6. Android native VPN Client with IKEv2 Mode
	Chapter 90. IPsec clients

90.6.1. Checklist of parameters

This table show the parameters of native VPN Client and their corresponding parameters in Abilis configuration. The information must be inserted in a “mirror” way: i.e. “LOCAL” information for Abilis are “REMOTE” for IPsec VPN client and vice versa.

Table 90.7. Checklist of parameters

The native VPN client parameter	Abilis IKE Table	Abilis IKE Table parameter
Server address	HOST	`LOC-IP`
IPSec identifier	HOST	`PEER-ID`
IPsec pre-shared key	PSK	`KEY`

90.6.2. Configuring native VPN Client

Please enter the following commands to configure the VPN in Abilis. Refer to Section 83.19.1, “How to configure a RAS using IPSEC VPN server” to for the configuration of IPsec and IKE resources.

[14:51:53] ABILIS_CPX:a ike host:1 mode:ike2 locip:80.80.80.80 remip:* side:inside hash:sha256 ID-TYPE:locip peer-id-type:key-id peer-id:android name:Android_IKE2

COMMAND EXECUTED

[14:55:35] ABILIS_CPX:a ike cli:1 host:1 net-loc:0.0.0.0/0 net-rem:10.0.2.1/32 pfs:no name:Android_IKE2_Cli

COMMAND EXECUTED

[14:55:44] ABILIS_CPX:a ike psk:1 key:24android20ike2pskey peer-id-type:key-id peer-id:android

COMMAND EXECUTED

	Caution
	To activate the changes made, execute the initialization command init res:ike.

To view the configuration made above, use the following commands.

[14:57:49] ABILIS_CPX:d ike host:1 -cli

-------------------------------------------------------------------------------
HOST: NAME:                              LIFETIME:  HASH:     DPD:    DPD-ACTION:
      LOCIP:          NATT:   MODE:      MODE-CFG:  DH:               DPD-DELAY:
      REMIP:          SIDE:   AUTH:      AUTH2:     CIPHER:   SA-TRY: DPD-TOUT:
      AUTH2-USER:                        AUTH2-PWD:
      -- ID -------------------------------------------------------------------
      ID-TYPE:        IP:/ID:
      PEER-ID-TYPE:   PEER-IP:/PEER-ID:
      -- RSA Cert -------------------------------------------------------------
      CERT-SEND:      ASN1-DN:
      CERT-PEER:      PEER-ASN1-DN:
      CERT-VERIFY:
-------------------------------------------------------------------------------
1     Android_IKE2                       3600       SHA256    YES     STOP
      178.168.028.120 YES     IKE2                  MODP2048          30
      *               INSIDE  PSK        NO         AES256    3       120
      -- ID -------------------------------------------------------------------
      LOCIP
      KEY-ID          android
-------------------------------------------------------------------------------

IKE Clients:

-------------------------------------------------------------------------------
CLI:  NAME:                                LIFETIME: ESP:        AH:
HOST: NET-LOC:           RULE:  PASSIVE:   PFS:      ESP-AUTH:   AH-AUTH:
      NET-REM:                  PERMANENT: TUNNEL:   ESP-CIPHER: MODE-CFG-DNS:
-------------------------------------------------------------------------------
1     Android_IKE2_Cli                     28800     YES         NO
1     000.000.000.000/00 IPSEC  YES        NO        SHA1        SHA1
      010.000.002.001/32        YES        YES       AES256      SYS
-------------------------------------------------------------------------------

[14:57:52] ABILIS_CPX:d ike psk:1

-------------------------------------------------------------------------------
PSK: KEY:     PEER-ID-TYPE:  PEER-IP:/PEER-ID:
-------------------------------------------------------------------------------
1    ******** KEY-ID         android

To configure an Android native VPN Client for IPsec VPN connection with Abilis, follow the screen below :

Open your device's Settings app.

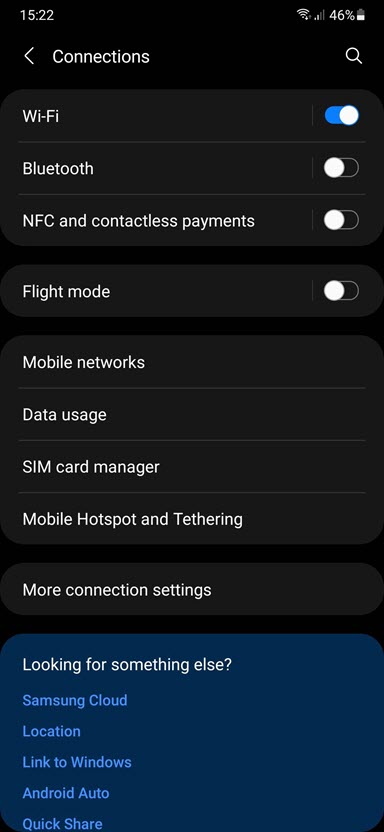

Click on Connections.

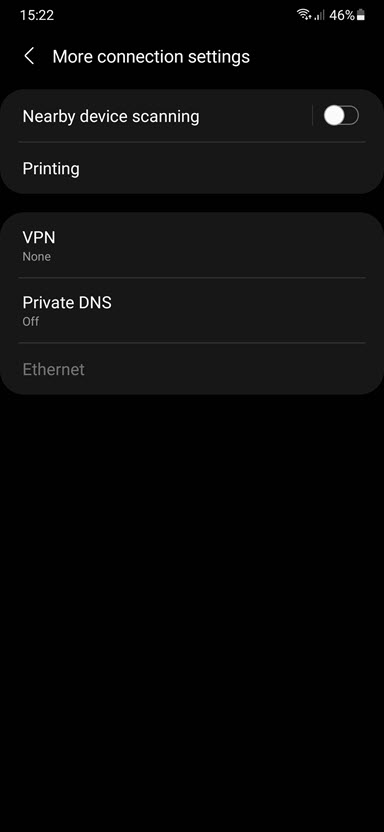

Click on More connection settings.

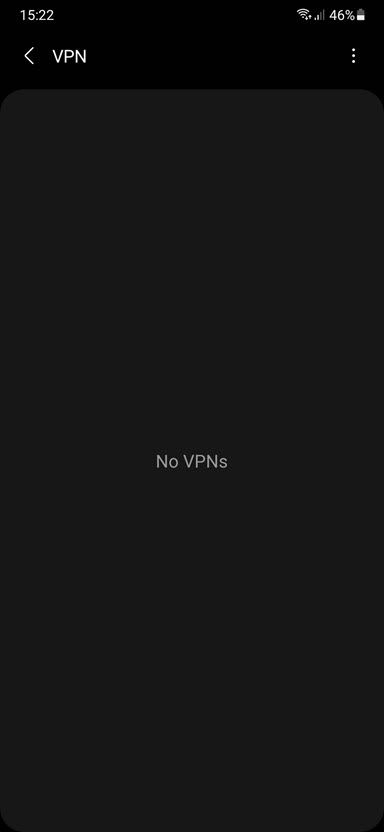

Hit VPN.

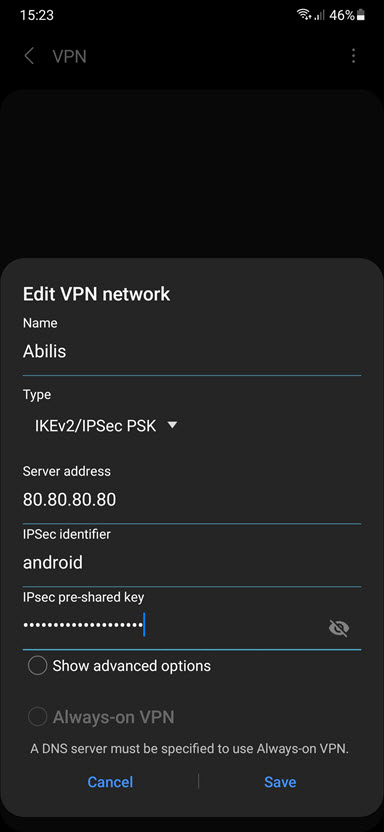

Tap the three dots in the upper right corner and hit “Add VPN Profile”and Enter the VPN information.
Click Save.

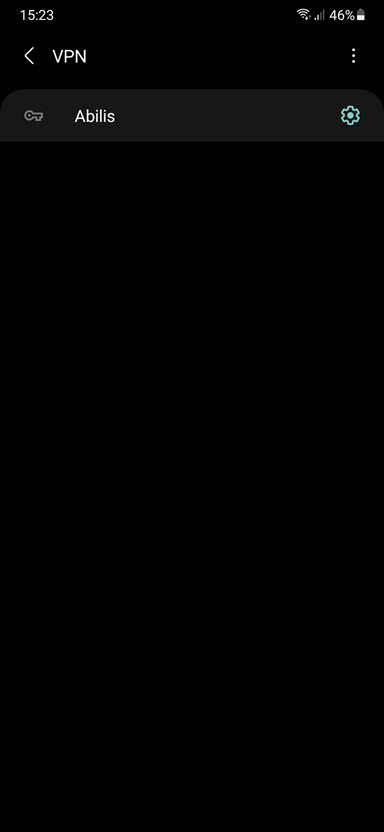

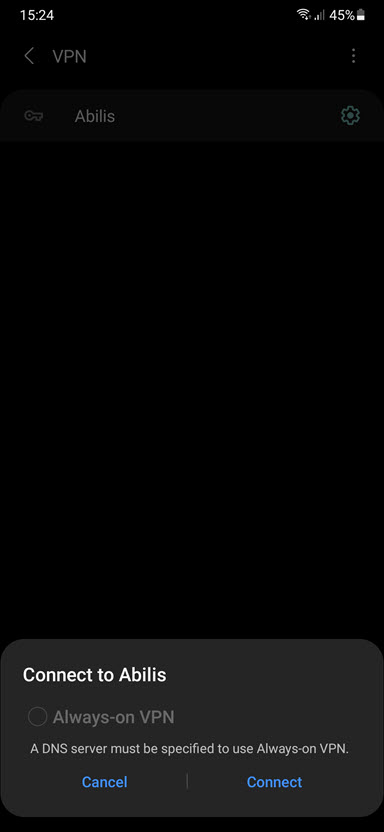

Now that your VPN is set up, you can connect to it by tapping on the VPN name in the VPN section of Connections. After that, tap Connect.

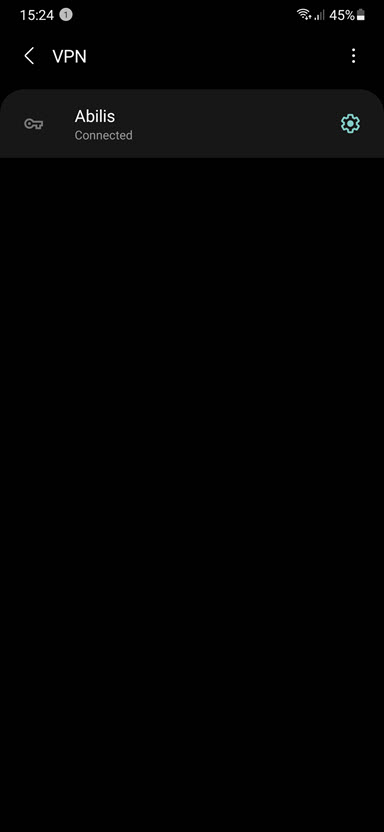

A notification will appear indicating that you are connected.
