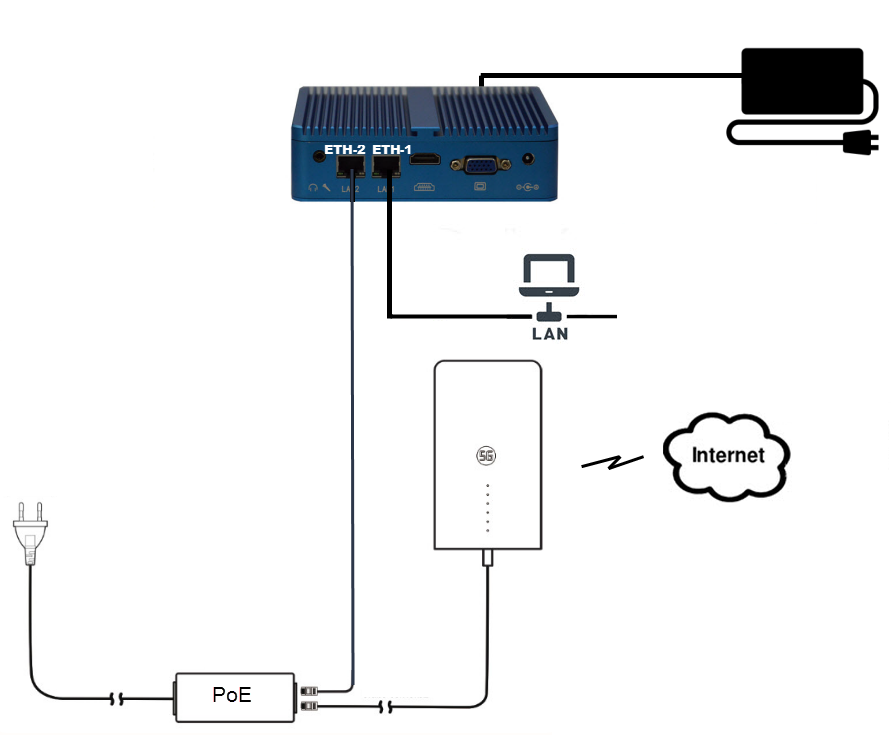

Follow the steps below to connect an 5G modem.
Power on Abilis;
Insert the Nano-SIM card into the 5G modem;
Connect the power adapter to the PoE injector;
Connect the LAN port of the PoE injector to the Abilis Ethernet port;
Connect the PoE port of the injector to the ETH1 port of the 5G modem using an Ethernet cable;
Add and configure the 5G resource;
Check the modem led status (5G modem).
| |  | |
