Calls directed to GSM/UMTS gateway can't be routed in transparent mode; you must create internal clusters and route the calls trough packet voice resources.
Assume that:
Abilis has the following CTI ports configuration: ports 31 and 32 are toward the PBX, ports 33 and 34 toward the ISDN lines and ports 201 and 202 toward GSM/UMTS gateway.
internal cluster clus1 and clus2 are already created.
Type the following command to verify ctig configuration:
[18:12:13] ABILIS_CPX:d ctig
ID: PICKUP: SCAN: RULE:
---------------------------+-------------------------+-------------------------
[DESCR:]
ID: SCAN: RULE: PICKUP: |P1 P2 P3 P4 P5 |P6 P7 P8 P9 ...
|... P62 P63 P64
---------------------------+-------------------------+-------------------------
PBX_group
1 NO R ST |31 32 . . . |. . . . .
---------------------------+-------------------------+-------------------------
ISDN_line_group
2 NO R ST |33 34 . . . |. . . . .
---------------------------+-------------------------+-------------------------
GSM_group
3 NO R ST |201 202 . . . |. . . . .
---------------------------+-------------------------+-------------------------![[Tip]](../images/tip.png) | Tip |
|---|---|
Interesting chapters: |
![[Warning]](../images/warning.png) | Warning |
|---|---|
At this moment GSM or UMTS gateway supports only G.711 coder. Other codecs are supported by transcoding through additional ISDN cards. |

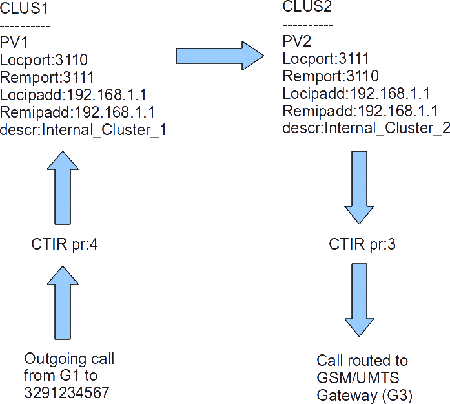

The following routings allow to route calls coming from a group of BRI ports (G1) toward GSM/UMTS gateway (G3) for numbers starting with digit 3.
[18:22:32] ABILIS_CPX:a ctir pr:3 type:ctov sr:clus2 poo:g3 coders:g.711 sp:64000 cdi:* sc:no dj:0 mj:40COMMAND EXECUTED [18:22:56] ABILIS_CPX:a ctir pr:4 type:vtoc poi:g1 ds:clus1 coders:g.711 sp:64000 cdi:3* next:u sc:no dj:0 mj:40COMMAND EXECUTED [18:23:40] ABILIS_CPX:d ctir- Not Saved (SAVE CONF), Not Refreshed (INIT) --------------------------------- ---+-----+-----------------+---------+--------------------+-------------------- PR |[DESCR] |TYPE |POI/SR [SR] |POO/DS |CDI |CDO ACT|NEXT |LAST |EEC |T301|CGI |CGO EDT|SP |SC |DJ |MJ |FMDJ|FMMJ|SDI |SDO |SPOUT|SCOUT|DJOUT|MJOUT|LCS |LCST|SGI |SGO | |RGI |RGO |FMRLY|FAXSP|MODSP|FMLVL|ECM |UDT |IG |OG |SG |DL |DH |CODERS |CODERSOUT |TI1 .. TI5 ------------------------------------------------------------------------------- ... ------------------------------------------------------------------------------- 3 CtoV Clus2 G3 * * NO ANY NO Dft * * 64000 NO 0 40 Sys Sys * * NO Sys * * * * Sys AUTO AUTO Sys Sys NO Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 4 VtoC G1 Clus1 3* * UNLIMITED ANY NO Dft * * 64000 NO 0 40 Sys Sys * * NO Sys * * * * Sys AUTO AUTO Sys Sys NO Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 5 TR G1 G2 * u* ------------------------------------------------------------------------------- 6 TR G2 G1 * * -------------------------------------------------------------------------------
The routing PR:4 routes calls coming from G1 ports to internal cluster
Clus1, while the routing PR:3 accepts calls from
internal cluster Clus2 and forwards them to
GSM/UMTS gateway.
The NEXT
parameter in the routing PR:4 is set to UNLIMITED;
if call fails, it would try to use next routings.
| Tip |
|---|---|
Interesting chapter: Section 43.6, “CTI Router”. |
The following routing allows to route calls coming from a remote
cluster (e.g. Abilis2) toward GSM gateway
(G3) for numbers starting with 3.
[18:33:54] ABILIS_CPX:a ctir pr:3 type:ctoc sr:Abilis2 ds:clus1 cdi:3* coders:g.711 sp:64000 sc:no djout:0 mjout:40COMMAND EXECUTED [18:34:38] ABILIS_CPX:d ctir---+-----+-----------------+---------+--------------------+-------------------- PR |[DESCR] |TYPE |POI/SR [SR] |POO/DS |CDI |CDO ACT|NEXT |LAST |EEC |T301|CGI |CGO EDT|SP |SC |DJ |MJ |FMDJ|FMMJ|SDI |SDO |SPOUT|SCOUT|DJOUT|MJOUT|LCS |LCST|SGI |SGO | |RGI |RGO |FMRLY|FAXSP|MODSP|FMLVL|ECM |UDT |IG |OG |SG |DL |DH |CODERS |CODERSOUT |TI1 .. TI5 ------------------------------------------------------------------------------- ... ------------------------------------------------------------------------------- 3 CtoC Abilis2 Clus1 3* * NO ANY NO Dft * * 64000 NO * * Sys Sys * * * * 0 40 NO Sys * * * * Sys AUTO AUTO Sys Sys NO G.711 ------------------------------------------------------------------------------- 4 CtoV Clus2 G3 * * NO ANY NO Dft * * 64000 NO 0 40 Sys Sys * * NO Sys * * * * Sys AUTO AUTO Sys Sys NO Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 5 VtoC G1 Clus1 3* * UNLIMITED ANY NO Dft * * 64000 NO 0 40 Sys Sys * * NO Sys * * * * Sys AUTO AUTO Sys Sys NO Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 6 TR G1 G2 * u* ------------------------------------------------------------------------------- 7 TR G2 G1 * * -------------------------------------------------------------------------------
The routing PR:3 accepts the calls coming from the remote
cluster Abilis2 toward numbers starting with 3 and
forward them to internal
cluster Clus1. The call will be intercepted
by the routing PR:4 and forwarded to GSM gateway.
| Tip |
|---|---|
Interesting chapters: |

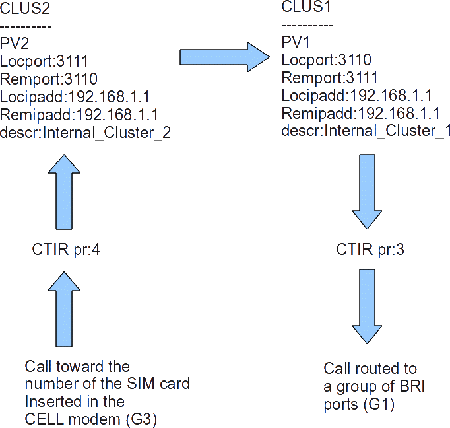

The following routings allow to route calls coming from GSM/UMTS
gateway (calls directed to the number of the SIM card inserted in the
CELL modem) to a group of BRI
ports (G1).
[18:46:24] ABILIS_CPX:a ctir pr:3 type:vtoc poi:g3 ds:clus2 cdi:* coders:g.711 sp:64000 cdo:711 sc:no dj:0 mj:40COMMAND EXECUTED [18:49:41] ABILIS_CPX:a ctir pr:3 type:ctov sr:clus1 poo:g1 cdi:711 coders:g.711 sp:64000 sc:no dj:0 mj:40COMMAND EXECUTED [18:51:00] ABILIS_CPX:d ctir---+-----+-----------------+---------+--------------------+-------------------- PR |[DESCR] |TYPE |POI/SR [SR] |POO/DS |CDI |CDO ACT|NEXT |LAST |EEC |T301|CGI |CGO EDT|SP |SC |DJ |MJ |FMDJ|FMMJ|SDI |SDO |SPOUT|SCOUT|DJOUT|MJOUT|LCS |LCST|SGI |SGO | |RGI |RGO |FMRLY|FAXSP|MODSP|FMLVL|ECM |UDT |IG |OG |SG |DL |DH |CODERS |CODERSOUT |TI1 .. TI5 ------------------------------------------------------------------------------- 0 DATA * CtiSLink * u* NO ANY NO Dft NO * * * * 'SgiAllowed' * ------------------------------------------------------------------------------- 1 DATA CtiSLink G2 * u* ------------------------------------------------------------------------------- 2 CtoV * G1 'Nodo' n'CDI.S2' ------------------------------------------------------------------------------- 3 CtoV Clus1 G1 711 * NO ANY NO Dft * * 64000 NO 0 40 Sys Sys * * NO Sys * * * * Sys AUTO AUTO Sys Sys NO Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 4 VtoC G3 Clus2 * 711 NO ANY NO Dft * * 64000 NO 0 40 Sys Sys * * NO Sys * * * * Sys AUTO AUTO Sys Sys NO Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 5 CtoC Abilis2 Clus1 3* * NO ANY NO Dft NO * * 64000 NO * * Sys Sys * * * * 0 40 NO Sys * * Sys AUTO AUTO Sys Sys G.711 ------------------------------------------------------------------------------- 6 CtoC Abilis2 Clus1 3* * NO ANY NO Dft NO * * 64000 Sys * * Sys Sys * * * * * * NO Sys * * Sys AUTO AUTO Sys Sys G.711 ------------------------------------------------------------------------------- 7 CtoV Clus2 G3 * * NO ANY NO Dft NO * * 64000 NO 0 40 Sys Sys * * NO Sys * * Sys AUTO AUTO Sys Sys Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 8 VtoC G1 Clus1 3* * UNLIMITED ANY NO Dft NO * * 64000 NO 0 40 Sys Sys * * NO Sys * * Sys AUTO AUTO Sys Sys Sys Sys Sys Sys Sys G.711 ------------------------------------------------------------------------------- 9 TR G1 G2 * u* ------------------------------------------------------------------------------- 10 TR G2 G1 * * -------------------------------------------------------------------------------
The routing PR:4 accepts the calls directed to GSM gateway and
forward them to internal
cluster Clus2, setting as Called Number
Output (CDO) the number 711 (it supposes that this
is the Post Operator number). The call generated, will be intercepted
by routing PR:3 and forwarded to G1 group (ISDN
ports of PBX).
| Tip |
|---|---|
Interesting chapters: Section 43.2, “CTI Ports configuration”; |
| |  | |
