27.5. DHCPC resource (DHCP Client)

The DHCPC resource can retrieve the ip address when abilis is used as dhcp client.

27.5.1. Activating DHCPC resource

Add the resource to the Abilis system; the DHCP resource may already exist in the system, but may not yet be active: set it active with the command s act res:dhcp.

[09:47:27] ABILIS_CPX:a res:dhcpc

COMMAND EXECUTED
[Caution]Caution

After adding or setting the DHCPC active, you must restart the Abilis to make the resource running (use the command warm start to reboot the Abilis).

[09:48:58] ABILIS_CPX:s p dhcpc act:yes

COMMAND EXECUTED

RES:DhcpC - Not Saved (SAVE CONF), Not Refreshed (INIT) -----------------------
       ------------------------------------------------------------------------
Run    DESCR:Dynamic_Host_Configuration_Protocol_Client
       LOG:DS        ACT:YES       msg-len:1472
       cli-udp-locport:68          srv-udp-remport:67          TOS:0-N
       DHCP-SERVER:*               DHCP-SERVER-LIST:#

27.5.2. DHCPC resource parameters

The default parameters suffice to make the resource to work properly.

The most important parameters are:

[10:45:42] ABILIS_CPX:_d p dhcpc

RES:DhcpC ---------------------------------------------------------------------
Run    DESCR:Dynamic_Host_Configuration_Protocol_Client
       LOG:DS        ACT:YES       msg-len:1472
       cli-udp-locport:68          srv-udp-remport:67          TOS:0-N
       DHCP-SERVER:*               DHCP-SERVER-LIST:#

[10:51:42] ABILIS_CPX:_d p dhcpc ?

DhcpC resource parameter(s):

DESCR:     Resource description [Max. 80 aphanumeric extended characters]
LOG:       State changes log and alarm generation [NO, D, S, A, L, T, ALL] [+E]
           (D: Debug Log; S: System Log; A: Alarm view; L: Local audible alarm;
            T: SNMP traps; +E: Extended Log of state changes, see ref. manual)
ACT:       Operation activation [NO, YES]
msg-len:   Maximum length of DHCP message, actually the UDP payload
           [548..2048]
cli-udp-locport: Client UDP port [68]                               <Read Only>
srv-udp-remport: DHCP Server UDP port [67]                          <Read Only>
TOS:       Type Of Service octet or Differentiated Services Field (DS):
           -' p-t', i.e. PRECEDENCE and TOS values, where 'p' can be [0..7]
            and 't' can be [N=None, D=Min. Delay, T=Max. Throughput, R=Max.
            Reliability, C=Min. Monetary Cost]
           - 'bbbbbb', i.e. DS value bit by bit, where 'b' can be [0, 1]
DHCP-SERVER: DHCP Server IP address [*, 1-126.x.x.x, 127.0.0.1, 128-223.x.x.x]
DHCP-SERVER-LIST: Name of an IP/IR/RU/MR list of DHCP Server IP addresses
           [#, 0..9, a..z, A..Z, _]

Refer to Section 68.15.3, “How to activate the DHCP in client mode” to view a further example of configuration.

27.5.3. Example of configuration

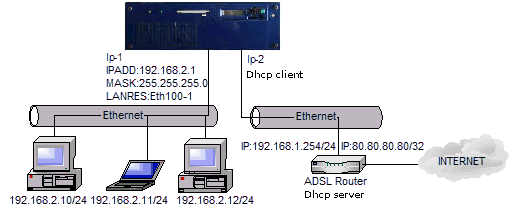

Configure the DHCPC and IP-2 resources so that Abilis retrieves the ip address from the ADSL router. The first step is to activate the DHCPC resource and then optionally configure the DHCP-SERVER parameter:

[16:43:03] ABILIS_CPX:_s p dhcpc dhcp-server:192.168.1.254

COMMAND EXECUTED

[16:43:33] ABILIS_CPX:_d p dhcpc

RES:DhcpC - Not Saved (SAVE CONF), Not Refreshed (INIT) -----------------------
       ------------------------------------------------------------------------
Run    DESCR:Dynamic_Host_Configuration_Protocol_Client
       LOG:DS        ACT:YES       msg-len:1472
       cli-udp-locport:68          srv-udp-remport:67          TOS:0-N
       DHCP-SERVER:192.168.001.254 DHCP-SERVER-LIST:#

Now IP-2 resource must be configured to use DHCP. Display diagnostics for IP-2 resource helps to view the retrieved ip address:

[16:48:46] ABILIS_CPX:_s p ip-2 ipadd:dhcp

COMMAND EXECUTED

[16:48:58] ABILIS_CPX:_d p ip-2

RES:Ip-2 - IP over LAN (LAN) --------------------------------------------------
Run    DESCR:WAN
       OPSTATE:UP             LOG:NO                 STATE-DETECT:NORMAL
       LANRES:Eth-2
       IPADD:DHCP    DHCP-GW:YES     DHCP-GW-AD:2       DHCP-DNS:YES
       REDIS:EXT     HIDE:NO         RP:NONE            IPSEC:NO       VRRP:NO
       NAT:INSIDE    UPNP:NO         DIFFSERV:NO        DDNS:NO
       OUTBUF:100    OUTQUEUE:FAIR   MTU:1500           BRD:NET
       OUTSPL:NO
       INBUF:0                       mru:1500           SRCV:NO
       - TRFA section ---------------------------------------------------------
       TRFA:NO
       - Lan ------------------------------------------------------------------
       LLOG:NO       arpcache:200    CACHETIMER:120     rxbuf:4     txbuf:14
       VLAN-ID:UNTAG
RES:Eth-2 ---------------------------------------------------------------------
Run    DESCR:
       LOG:DS            MODE:AUTO         DUPLEX:HALF
       dma-rxbuf:250     dma-txbuf:25      max-vlans:25
       ip-rxbuf:25       arp-rxbuf:5       pppoed-rxbuf:5    pppoes-rxbuf:25


[16:49:04] ABILIS_CPX:_d d ip-2

RES:Ip-2 - IP over LAN (LAN) --------------------------------------------------
       WAN
       STATE:UP              LINK-STATE:LINKREADY
       CUR-IPADD:192.168.001.100    CUR-MASK:255.255.255.000
       OUTBUF:100   S-OUTBUF:500    CUR-OUTSP:N/A      OUTSP-TOUT:N/A
       INBUF:0      S-INBUF:0       CUR-INSP:N/A       INSP-TOUT:N/A
       SPL-OVERHEAD:RAW-IP,ETH
       - Lan ------------------------------------------------------------------
       STATE:LINKREADY       ARP-CACHE-ITEMS:1

There are three other parameters which can be used to fit the configuration to needs:

DHCP-GW

Retrieve default gateway through DHCP [NO, YES]. Default value is YES.

DHCP-GW-AD

Administrative distance assigned to the default route obtained from a DHCP server [0..255]. Default value is 0.

DHCP-DNS

Retrieve primary and secondary DNS server through DHCP [NO, YES]. Default value is YES.

For example, configure IP-2 resource in the following way to retrieve only ip address and default gateway:

[17:05:54] ABILIS_CPX:_s p ip-2 dhcp-gw:yes dhcp-dns:no

COMMAND EXECUTED

[17:07:53] ABILIS_CPX:_init res:ip-2

COMMAND EXECUTED

[17:08:15] ABILIS_CPX:_d p ip-2

RES:Ip-2 - IP over LAN (LAN) --------------------------------------------------
Run    DESCR:WAN
       OPSTATE:UP             LOG:NO                 STATE-DETECT:NORMAL
       LANRES:Eth-2
       IPADD:DHCP    DHCP-GW:YES     DHCP-GW-AD:2       DHCP-DNS:NO
       REDIS:EXT     HIDE:NO         RP:NONE            IPSEC:NO       VRRP:NO
       NAT:INSIDE    UPNP:NO         DIFFSERV:NO        DDNS:NO
       OUTBUF:100    OUTQUEUE:FAIR   MTU:1500           BRD:NET
       OUTSPL:NO
       INBUF:0                       mru:1500           SRCV:NO
       - TRFA section ---------------------------------------------------------
       TRFA:NO
       - Lan ------------------------------------------------------------------
       LLOG:NO       arpcache:200    CACHETIMER:120     rxbuf:4     txbuf:14
       VLAN-ID:UNTAG
RES:Eth-2 ---------------------------------------------------------------------
Run    DESCR:
       LOG:DS            MODE:AUTO         DUPLEX:HALF
       dma-rxbuf:250     dma-txbuf:25      max-vlans:25
       ip-rxbuf:25       arp-rxbuf:5       pppoed-rxbuf:5    pppoes-rxbuf:25

[17:08:18] ABILIS_CPX:_d ipr

Destination routes and conditional source routes:
+-+-+-+-+--------------------+--------------------+-----------------+----+---+
|B|P|S|H|     NET:/MASK:     |      MASK: or      |       GW: or    |IP: |AD:|
| | | | |                    |   SRNET:/SRMASK:   |      IPLB:      |    |   |
+-+-+-+-+--------------------+--------------------+-----------------+----+---+
|*|C| |*| 127.000.000.001/32 | 255.255.255.255    |                 |LOOP|  0|
|*|C| | | 192.168.030.001/32 | 255.255.255.255    |                 |R-ID|  0|
|*|C| | | 010.000.000.000/29 | 255.255.255.248    |                 |  12|  0|
|*|C| | | 192.168.000.000/24 | 255.255.255.000    |                 |  11|  0|
|*|C| | | 192.168.001.000/24 | 255.255.255.000    |                 |   2|  0|
|*|S| | | 192.168.008.000/24 | 255.255.255.000    |                 |D 10|  1|
|*|C| | | 192.168.030.000/24 | 255.255.255.000    |                 |   1|  0|
|*|C| | | 000.000.000.000/0  | 000.000.000.000    | 192.168.001.254 |   2|  0|
+-+-+-+-+--------------------+--------------------+-----------------+----+---+

In some cases it's useful to retrieve only ip address:

[17:11:15] ABILIS_CPX:_s p ip-2 dhcp-gw:no

COMMAND EXECUTED

[17:20:18] ABILIS_CPX:_init res:ip-2

COMMAND EXECUTED

[17:20:29] ABILIS_CPX:_d p ip-2

RES:Ip-2 - IP over LAN (LAN) --------------------------------------------------
Run    DESCR:WAN
       OPSTATE:UP             LOG:NO                 STATE-DETECT:NORMAL
       LANRES:Eth-2
       IPADD:DHCP    DHCP-GW:NO     DHCP-GW-AD:2       DHCP-DNS:NO
       REDIS:EXT     HIDE:NO         RP:NONE            IPSEC:NO       VRRP:NO
       NAT:INSIDE    UPNP:NO         DIFFSERV:NO        DDNS:NO
       OUTBUF:100    OUTQUEUE:FAIR   MTU:1500           BRD:NET
       OUTSPL:NO
       INBUF:0                       mru:1500           SRCV:NO
       - TRFA section ---------------------------------------------------------
       TRFA:NO
       - Lan ------------------------------------------------------------------
       LLOG:NO       arpcache:200    CACHETIMER:120     rxbuf:4     txbuf:14
       VLAN-ID:UNTAG
RES:Eth-2 ---------------------------------------------------------------------
Run    DESCR:
       LOG:DS            MODE:AUTO         DUPLEX:HALF
       dma-rxbuf:250     dma-txbuf:25      max-vlans:25
       ip-rxbuf:25       arp-rxbuf:5       pppoed-rxbuf:5    pppoes-rxbuf:25

[17:20:33] ABILIS_CPX:_d ipr

Destination routes and conditional source routes:
+-+-+-+-+--------------------+--------------------+-----------------+----+---+
|B|P|S|H|     NET:/MASK:     |      MASK: or      |       GW: or    |IP: |AD:|
| | | | |                    |   SRNET:/SRMASK:   |      IPLB:      |    |   |
+-+-+-+-+--------------------+--------------------+-----------------+----+---+
|*|C| |*| 127.000.000.001/32 | 255.255.255.255    |                 |LOOP|  0|
|*|C| | | 192.168.030.001/32 | 255.255.255.255    |                 |R-ID|  0|
|*|C| | | 010.000.000.000/29 | 255.255.255.248    |                 |  12|  0|
|*|C| | | 192.168.000.000/24 | 255.255.255.000    |                 |  11|  0|
|*|C| | | 192.168.001.000/24 | 255.255.255.000    |                 |   2|  0|
|*|S| | | 192.168.008.000/24 | 255.255.255.000    |                 |D 10|  1|
|*|C| | | 192.168.030.000/24 | 255.255.255.000    |                 |   1|  0|
+-+-+-+-+--------------------+--------------------+-----------------+----+---+


[17:20:57] ABILIS_CPX:_d d ip-2

RES:Ip-2 - IP over LAN (LAN) --------------------------------------------------
       WAN
       STATE:UP              LINK-STATE:LINKREADY
       CUR-IPADD:192.168.001.100    CUR-MASK:255.255.255.000
       OUTBUF:100   S-OUTBUF:500    CUR-OUTSP:N/A      OUTSP-TOUT:N/A
       INBUF:0      S-INBUF:0       CUR-INSP:N/A       INSP-TOUT:N/A
       SPL-OVERHEAD:RAW-IP,ETH
       - Lan ------------------------------------------------------------------
       STATE:LINKREADY       ARP-CACHE-ITEMS:1
