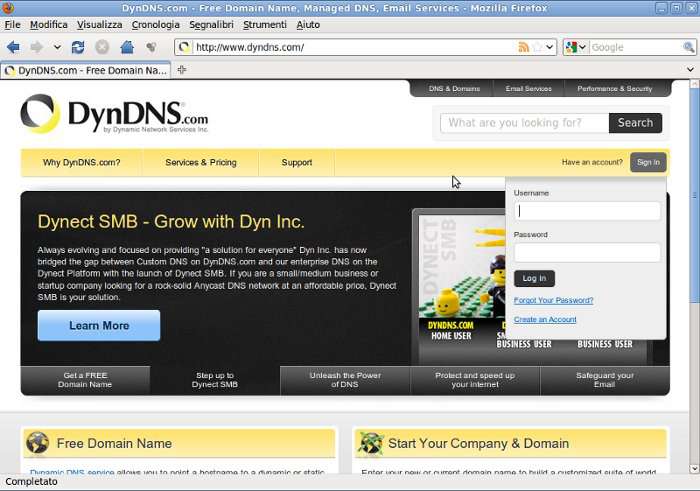

Point your browser to www.dyndns.com, click Sign In. Then fill username and password if you have already an account or Create an Account.
If you have already an account on dyndns.com you can skip the following steps and jump to this paragraph.

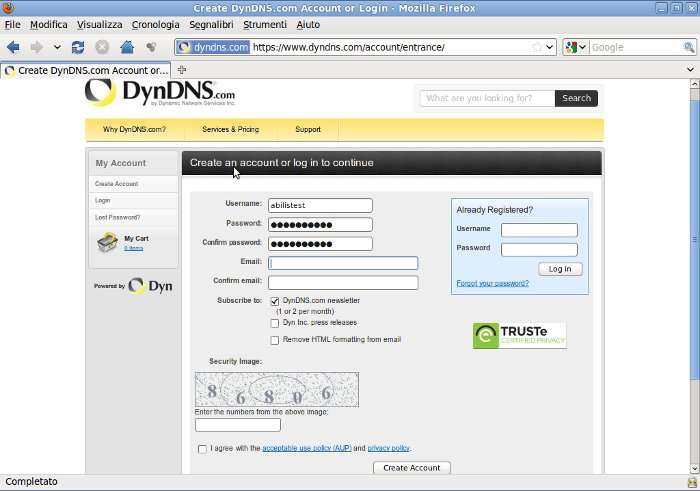

Fill the requested fields username, password, email
choose the options desired in the Subscribe to section and enter the numbers of the security image
check the privacy policy
click the Create Account button
In the figure below username and password are abilistest. Remember these values because they will be used to configure Abilis.

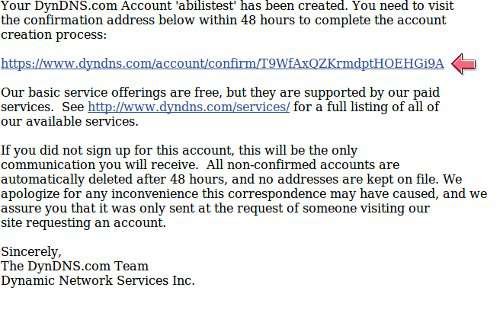

An email with the following text will be sent to the email address entered above. Click on the link to complete the account creation process.

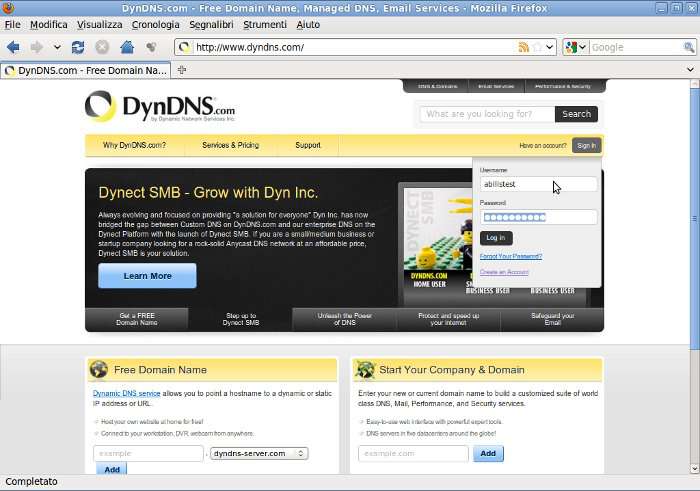

Now your account is activated. Point your browser to www.dyndns.com, click Sign In and fill username and password entered above.

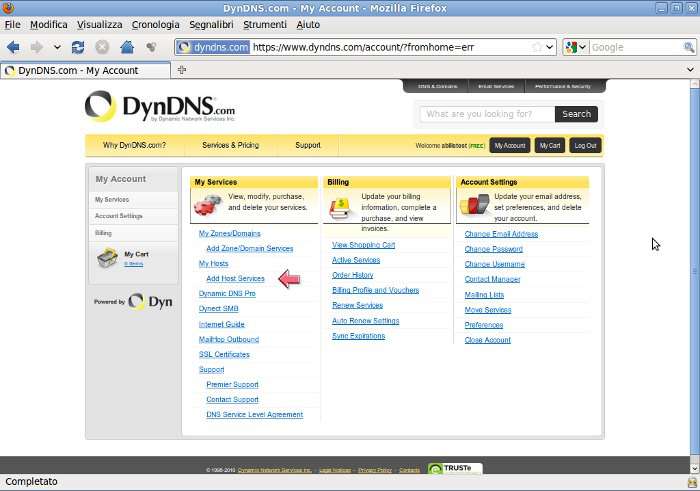

After logging in, a page with services, billing and account settings is shown. Click Add Host Services in My Services column.

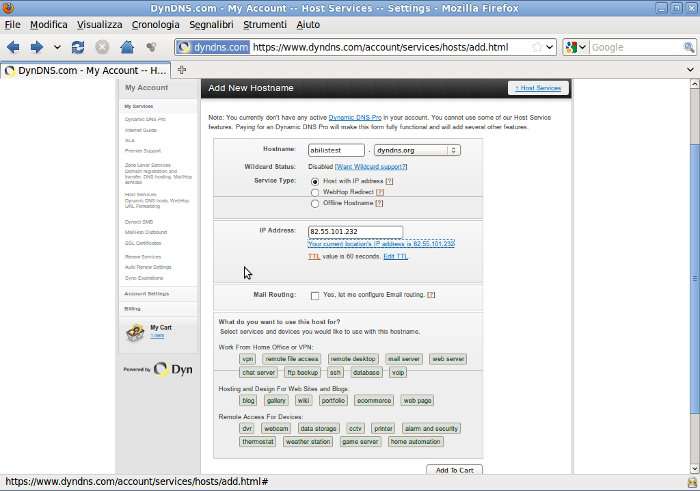

The following page is very important because here you can choose the DNS name associated to the dynamic ip entering hostname and domain. For example if hostname is abilistest and the choosen domain is dyndns.org, the resulting DNS name is abilistest.dyndns.org.
Fill the Hostname field and select dyndns.org from the drop-down menu
select Host with IP address radio button
enter ip address
select services and devices to use with the chosen hostname
click add to cart

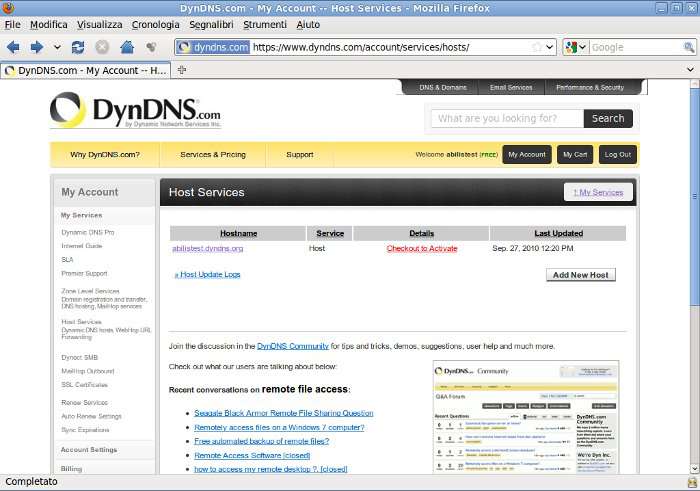

Click Checkout to activate in the following page.

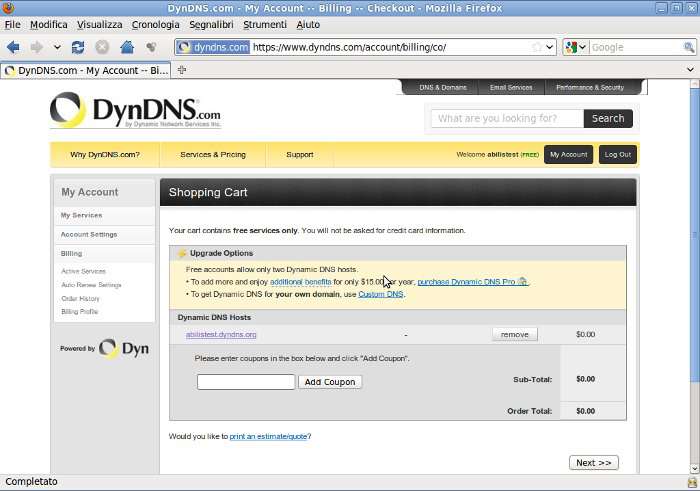

Click Next button.

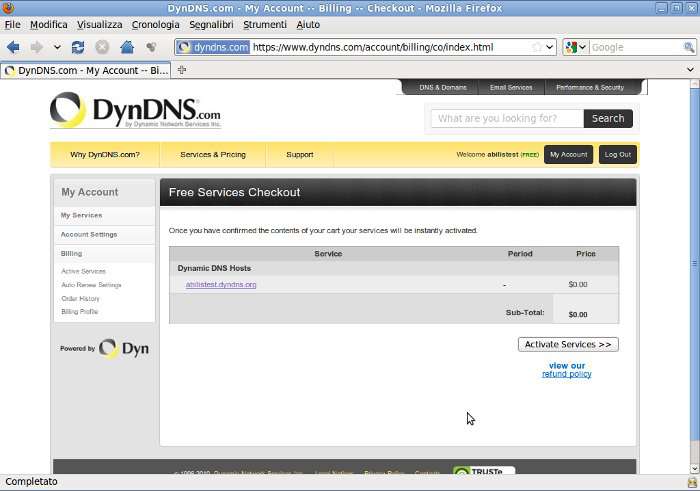

Click Activate Services. Now the configuration of the services on dyndns.org is completed.
In the next section there are the steps to follow to configure Abilis DDNS service.
Assuming that the ip resource toward internet is ip-1 and it's already activated and configured (see chapters in the section How to Networking).
Enter into the Abilis control-program or open the configuration file with the Console configurator and type the following commands.
| a
res:dns or s act res:dns | Add the DDNS resource. or If the resource already exists, set it active. |
| s p ddns act:yes | activate the DDNS resource |
| s p ddns service:dyndns.org | set the ddns service name |
| s p ddns user:abilistest pwd:abilistest | set user name and password |
| s p ip-1 ddns:yes | enable DDNS for the resource ip-1 |
| s p ip-1 ddns-fqdn:abilistest.dyndns.org | set the FQDN for the resource ip-1 |
| save conf | save cthe configuration |
On a working Abilis, a system restart is required to make the IP-5 resource running.
| |  | |
