2.4. Abilis Base-I 2U

	Important
	The Abilis Base-I 2U is supported starting from Abilis firmware version 8.2.0.

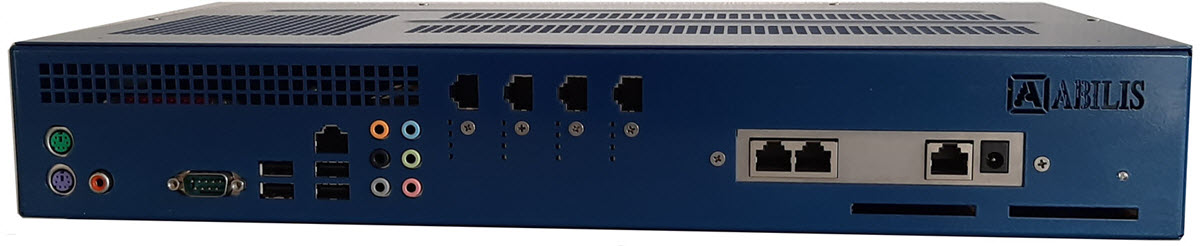

Figure 2.7. Abilis Base-I 2U

Abilis Base-I 2U

Abilis Abilis Base-I 2U is an expandable device. Below there are the hardware characteristics of the base unit:

M/B P31-DS3L;

Intel(R) Core(TM)2 Duo CPU E4500 @ 2.20GHz;
1024 MB RAM DDR3;
2 Compact-Flash 4096MB modules for boot;
1 RS-232 ports;
4/8 USB ports;
6 GigaEthernet;

These are the expansions:

1 BSE.
BSE device configuration creates 8 BRI and 40 POTS and only the actually installed ones will be running. The not installed ports will appear as "Not running" and may be deactivated and hidden using the S INACT CTIP:xxx command.
The D PCIDEV will show the type and numbers of ports actually present on the installed BSE card using the following scheme:
nickname x-y-x
where
nickname
Nickname used to identify the card available in one or more mounting options.
x
Number of BRI ports.
y
Number of on-board POTS ports.
z
Number of POTS ports available through ELTI interface and POTSBOX.
Examples of BSE:
- BSE28 0-4-32 (4 POTS on-board plus 32 POTS via 1 ELTI/POTSBOX);
- BSE29 4-0-32 (4 BRI ports and 1 ELTI port for up to 32 POTS via POTSBOX);
- BSE26 2-2-32 (2 BRI, 2 POTS on-board plus 32 POTS via 1 ELTI/POTSBOX).

2.4.1. Physical and electrical specifications

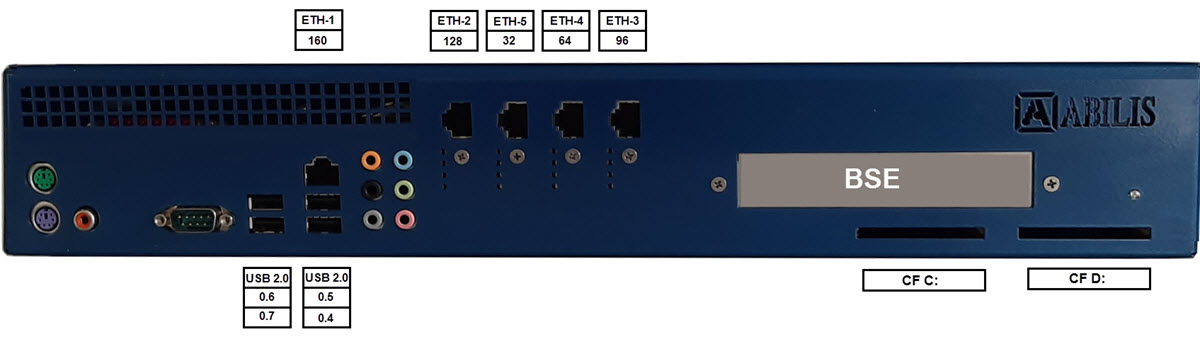

Figure 2.8. The numbering of the physical ports

The numbering of the physical ports

Dimensions[mm]: 440x300x94;

Weight: 2 Kg;

Power supply: 110-230VAC, 150W.
