61.4. Connecting Abilis and a SIP phone

This section contains instructions for a correct set-up of Abilis CPX and SIP phone interconnection.

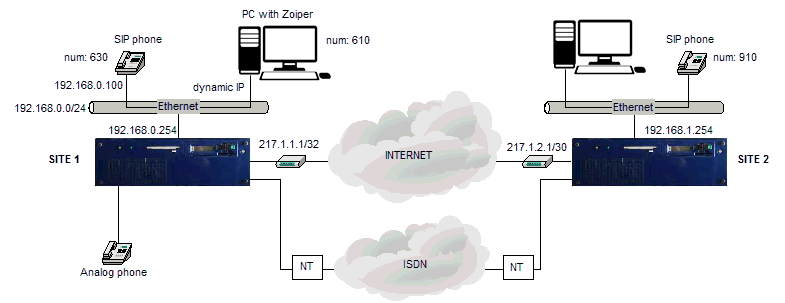

Figure 61.7. Configuration scheme

Configuration scheme

In the figure there are the following elements:

The purpose is to enable the communication between:

Assumptions: the POTS cards, used to manage the analog phones and configuration for Cluster and CtiLink for compressed phone calls, are already active on Abilis.

[Tip]Tip

Interesting chapters:

Section 84.9, “How to register a SIP telephone onto Abilis”;

Section 61.1.2, “CTISIP Registration”;

Section 61.1.3, “CTISIP INVITE messages”;

Section 84.5, “How to configure a multicast group of SIP phones”.

61.4.1. Activation and configuration of the CtiSip resource

Activate the CTISIP resource in the Abilis of “Site 1” and enable up to 10 SIP connections.

[10:27:42] ABILIS_CPX_1:s p ctisip act:yes sesnum:10

COMMAND EXECUTED

[10:27:53] ABILIS_CPX_1:d p ctisip

RES:CtiSip - Not Saved (SAVE CONF), Not Refreshed (INIT) ----------------------
       ------------------------------------------------------------------------
Run    DESCR:Session_Initiation_Protocol
       LOG:NO                  ACT:YES                 TRACE:SIP
       siplog:ERR              siplogsize:200
       sesnum:10               non-invite-sesnum:50    max-sub:100
       wdir:C:\APP\SIP\
       -- IP settings and filters ---------------------------------------------
       LOCPORT-BASE:5060       RTP-PORT-BASE:6000      SIP-TOS:0-N
       LOCPORT-RANGE:100       rtp-port-range:70       RTP-TOS:0-D
       LOCPORT:5060                                    mxps:2172
       SRCADD:OUT-IP
       EXTERNAL-IP:OUT-IP
       IPSRC:127.000.000.001   IPSRCLIST:PrivateIpAdd
       -- Sip signalling ------------------------------------------------------
       DOMAIN:
       UA:AUTO (Abilis CPX - Ver. 8.9.0/STD - Build 4665.39 - Branch 8.9)
       LOC-REG-EXPIRY:120      QUALIFY:15              AUTH-TOUT:4
       LOC-SUB-EXPIRY:180      KEEPALIVE:90            AUTH-TOUT-INVITE:4
       MAX-NNI-FWD:2           CPO-SIGNALLING:NO       T1:500   T2:4    T4:5
       -- RTP Audio codecs and Fax --------------------------------------------
       CPO-RTP:NO              DTMF-MODE:RFC2833       T38:YES
       CHAN-FREQ:20            DTMF-PLAY:100           T38-G711:NO
       DISC-AUDIO:NO           DTMF-SILENCE:100        T38-PACKING:1
       RTP-REORDER:0           DTMF-DETECT-PLAY:40     T38-REDUND:REDUNDANCY
       T38-REORDER:0           DTMF-DETECT-SILENCE:40  T38-REDUND-PCK:1
       -- Ctir signalling -----------------------------------------------------
       ROUTING:EN-BLOC         ROUTE-BY-SD:NO          CLIP-RULE:PRIVATE
       DIALT:5                 PROVIDE-SG:NO           CTIP-TYPE:USER
       T302:15                 RG-IN:DISABLE           NPOO-CT:SYS (NO)

Keep all the default parameters.

Repeat the same operation for the Abilis of “Site 2”.

61.4.2. Users configuration

Activate two SIP user in the Abilis of “Site 1” (PC with Zoiper and SIP phone).

61.4.2.1. “Zoiper” user configuration.

Add the user in the Abilis of “Site 1” and enable it to SIP.

[10:50:19] ABILIS_CPX_1:a user:zoiper sip:yes

COMMAND EXECUTED

[10:50:28] ABILIS_CPX_1:d user

- Not Saved (SAVE CONF) -------------------------------------------------------
------------------------+-------------+----------------------------------------
USER             PWD ACT|CTIP CLUS    |CHAT LDAP PPP FTP HTTP MAIL IAX SIP VO
------------------------+-------------+----------------------------------------
admin           ***  YES  #     #       YES YES  YES NO   YES  NO  NO  NO  NO
guest                NO   #     #       NO  NO   NO  NO   NO   NO  NO  NO  NO
zoiper               YES  #     #       NO  NO   NO  NO   NO   NO  NO  YES NO

Give the new user the following characteristics:

  • Password: zoiper

  • Host: dynamic (the PC receives the IP address from a DHCP server)

  • Simultaneous half-duplex call: 2

  • SIP number: 610

[09:45:52] ABILIS_CPX_1:s user:zoiper pwd:zoiper sip-host:dynamic sip-maxses-bid:2 sip-number:610

COMMAND EXECUTED

[09:46:23] ABILIS_CPX_1:d user:zoiper

- Not Saved (SAVE CONF) -------------------------------------------------------
Parameter:          | Value:
--------------------+----------------------------------------------------------
USER:                 zoiper
REAL-NAME:            zoiper
ID:                   46                                           <Read Only>
PWD:                  ***
ACT:                  YES
CP-LEVEL:             NO
SSH-IP-PERMIT:        *
TELNET-IP-PERMIT:     *
CTI-ROLE:             EXTENSION
GROUP:
CTIP:                 #
CTIP-CDI-PERMIT:      *
CLUS:                 #
CLUS-CDI-PERMIT:      *
ADDRBOOK-SYNC:        SYS
ADDRBOOK-NUMBER:      AUTO
ADDRBOOK-OUTDIAL:     NONE
ADDRBOOK-PRIV-MAX:    SYS
ADDRBOOK-PUB-EDITABLE:SYS
IO-MAP:               #
OPC-ROLE:             USER
OPC-VIEW:             *
OPC-HIDE-NUMBERS:     NO
OPC-MONITOR:          NONE
OPC-PRIVACY:          NO
CHAT:                 NO
CHAT-USER:            SYS
CHAT-PWD:             SYS
SIP:                  YES
SIP-TYPE:             PHONE
SIP-DOMAIN:           SYS
SIP-HOST:             DYNAMIC
SIP-REMPORT:          (DYNAMIC)
SIP-LOCPORT:          SYS (5060)
SIP-SRCADD:           SYS
SIP-IP-PERMIT:        *
SIP-MAXSES-BID:       2
SIP-MAXSES-IN:        0
SIP-MAXSES-OUT:       0
SIP-BUSY-INUSE:       NO
SIP-CDI-HEADER:       REQUEST-URI
SIP-CDI-PERMIT:       *
SIP-NUMBER:           610
SIP-ADDRBOOK-NUM:     SIP-NUMBER
SIP-CG-NUM:           AUTO
SIP-FWD-CG-NUM:       CALLER
SIP-DISPLAY-NAME:     CG
SIP-CTIP-TYPE:        SYS
SIP-RG-IN:            SYS
SIP-ROUTE-BY-SD:      NO
SIP-PROVIDE-SG:       NO
SIP-CLIP-RULE:        SYS
SIP-BUSY-NOCHAN:      NO
SIP-LCS-GROUP:        NONE
SIP-CPO-RTP:          SYS
SIP-CPO-SIGNALLING:   SYS
SIP-RCC:              YES
SIP-OPC-AUTOANSWER:   YES
SIP-SS:               NO
SIP-SS-PICKUP:        GROUPS
SIP-SS-PRES-CG:       YES
SIP-SS-CF-DND:        YES
SIP-SS-VM:            YES
SIP-CHAN-FREQ:        SYS
SIP-REMOTE-NAT:       NO
SIP-LOCAL-NAT:        NO
SIP-EXTERNAL-IP:      SYS
SIP-PRACK:            YES
SIP-QUALIFY:          NO
SIP-SEND-Q850:        YES
SIP-KEEPALIVE:        SYS
SIP-DTMF-MODE:        SYS
SIP-DISC-AUDIO:       SYS
SIP-BC-TRANSP:        UDI
SIP-T38:              SYS
SIP-T38-G711:         SYS
SIP-T38-PACKING:      SYS
SIP-T38-REDUND:       SYS
SIP-T38-REDUND-PCK:   SYS
SIP-UA:               SYS
SIP-UA-PERMIT:        *
SIP-REM-USER:
SIP-REM-PASS:
SIP-REM-AUTH-USER:    AUTO ()
SIP-REM-REG-EXPIRY:   120
SIP-REM-REG:          NO
-------------------------------------------------------------------------------

61.4.2.2. “Sip phone” user configuration

Add the user in the Abilis of “Site 1” and enable it to SIP.

[09:51:19] ABILIS_CPX_1:a user:sip_phone sip:yes

COMMAND EXECUTED

[09:51:31] ABILIS_CPX_1:d user

- Not Saved (SAVE CONF) -------------------------------------------------------
------------------------+-------------+----------------------------------------
USER             PWD ACT|CTIP CLUS    |CHAT LDAP PPP FTP HTTP MAIL IAX SIP VO
------------------------+-------------+----------------------------------------
admin             ***  YES  #     #     YES YES  YES  NO  YES  NO  NO  NO  NO
guest                  NO   #     #     NO   NO   NO  NO   NO  NO  NO  NO  NO
sip_phone              YES  #     #     NO   NO   NO  NO   NO  NO  NO  YES NO
zoiper            ***  YES  #     #     NO   NO   NO  NO   NO  NO  NO  YES NO

Give the new user the following characteristics:

  • Password:sip_phone

  • Host: dynamic (the PC receives the IP address from a DHCP server)

  • 2 simultaneous half-duplex calls

  • SIP number: 630

[09:51:51] ABILIS_CPX_1:s user:sip_phone pwd:sip_phone sip-host:dynamic sip-maxses-bid:2 sip-number:630

COMMAND EXECUTED

[09:52:38] ABILIS_CPX_1:d user:sip_phone

- Not Saved (SAVE CONF) -------------------------------------------------------
Parameter:          | Value:
--------------------+----------------------------------------------------------
USER:                 sip_phone
REAL-NAME:            sip_phone
ID:                   47                                           <Read Only>
PWD:                  ***
ACT:                  YES
CP-LEVEL:             NO
SSH-IP-PERMIT:        *
TELNET-IP-PERMIT:     *
CTI-ROLE:             EXTENSION
GROUP:
CTIP:                 #
CTIP-CDI-PERMIT:      *
CLUS:                 #
CLUS-CDI-PERMIT:      *
ADDRBOOK-SYNC:        SYS
ADDRBOOK-NUMBER:      AUTO
ADDRBOOK-OUTDIAL:     NONE
ADDRBOOK-PRIV-MAX:    SYS
ADDRBOOK-PUB-EDITABLE:SYS
IO-MAP:               #
OPC-ROLE:             USER
OPC-VIEW:             *
OPC-HIDE-NUMBERS:     NO
OPC-MONITOR:          NONE
OPC-PRIVACY:          NO
CHAT:                 NO
CHAT-USER:            SYS
CHAT-PWD:             SYS
SIP:                  YES
SIP-TYPE:             PHONE
SIP-DOMAIN:           SYS
SIP-HOST:             DYNAMIC
SIP-REMPORT:          (DYNAMIC)
SIP-LOCPORT:          SYS (5060)
SIP-SRCADD:           SYS
SIP-IP-PERMIT:        *
SIP-MAXSES-BID:       2
SIP-MAXSES-IN:        0
SIP-MAXSES-OUT:       0
SIP-BUSY-INUSE:       NO
SIP-CDI-HEADER:       REQUEST-URI
SIP-CDI-PERMIT:       *
SIP-NUMBER:           630
SIP-ADDRBOOK-NUM:     SIP-NUMBER
SIP-CG-NUM:           AUTO
SIP-FWD-CG-NUM:       CALLER
SIP-DISPLAY-NAME:     CG
SIP-CTIP-TYPE:        SYS
SIP-RG-IN:            SYS
SIP-ROUTE-BY-SD:      NO
SIP-PROVIDE-SG:       NO
SIP-CLIP-RULE:        SYS
SIP-BUSY-NOCHAN:      NO
SIP-LCS-GROUP:        NONE
SIP-CPO-RTP:          SYS
SIP-CPO-SIGNALLING:   SYS
SIP-RCC:              YES
SIP-OPC-AUTOANSWER:   YES
SIP-SS:               NO
SIP-SS-PICKUP:        GROUPS
SIP-SS-PRES-CG:       YES
SIP-SS-CF-DND:        YES
SIP-SS-VM:            YES
SIP-CHAN-FREQ:        SYS
SIP-REMOTE-NAT:       NO
SIP-LOCAL-NAT:        NO
SIP-EXTERNAL-IP:      SYS
SIP-PRACK:            YES
SIP-QUALIFY:          NO
SIP-SEND-Q850:        YES
SIP-KEEPALIVE:        SYS
SIP-DTMF-MODE:        SYS
SIP-DISC-AUDIO:       SYS
SIP-BC-TRANSP:        UDI
SIP-T38:              SYS
SIP-T38-G711:         SYS
SIP-T38-PACKING:      SYS
SIP-T38-REDUND:       SYS
SIP-T38-REDUND-PCK:   SYS
SIP-UA:               SYS
SIP-UA-PERMIT:        *
SIP-REM-USER:
SIP-REM-PASS:
SIP-REM-AUTH-USER:    AUTO ()
SIP-REM-REG-EXPIRY:   120
SIP-REM-REG:          NO
-------------------------------------------------------------------------------

Add another “sip_phone” user in the Abilis of “Site 2” and assign it the SIP-NUMBER:910 (the configuration is similar to that one of “Site 1”).

61.4.3. CTISIP translation table

61.4.3.1. CTISIP translation table of “Site 1

Since the SIP-NUMBER parameter for the SIP users of “Site 1” is specified, the routings will be automatically connected in the table.

[11:25:38] ABILIS_CPX_1:d ctisip numbers

Total:2        Sip-Number:2         Static:0

NUMx: [SIP-NUMBER:]       USER:                              PROVENIENCE:
------------------------------------------------------------------------
[630]                     sip_phone                           SIP-NUMBER
[610]                     zoiper                              SIP-NUMBER

Further modifications aren't necessary.

61.4.3.2. CTISIP translation table of “Site 2

Since the SIP-NUMBER parameter for the SIP user of “Site 2” is specified, the routing will be automatically connected in the table.

[12:03:55] ABILIS_CPX_2:d ctisip numbers

Total:1        Sip-Number:1         Static:0

NUMx: [SIP-NUMBER:]       USER:                             Provenience:
------------------------------------------------------------------------
[910]                     sip_phone                           SIP-NUMBER

Further modifications aren't necessary.

61.4.4. CTI Routings configuration

61.4.4.1. Abilis CTI Routing of “Site 1

The purpose is to enable the communication between:

  • SIP users in “Site 1” (SIP phone and PC with Zoiper);

  • The POTS phone and the SIP users of “Site 1”;

  • SIP users in “Site 1” and the SIP users in “Site 2”.

61.4.4.1.1. Communication between the SIP users

To connect up the PC with Zoiper and the SIP phone in “Site 1”, type:

[10:27:19] ABILIS_CPX_1:a ctir pr:0 poi:sip out:sip cdi:'numsip' sp:64000

COMMAND EXECUTED

[16:42:17] ABILIS_CPX_1:d ctir

Last change: 17/06/2015 10:01:34 CET

---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
   |BCI   |POI |SR      |GI |OUT      |CDI                 |CDO
ACT|NEXT        |LAST       |EEC |T301|CGI                 |CGO
EDT|SP    |SC   |DJ   |MJ   |FMDJ|FMMJ|SDI                 |SDO
   |SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI                 |SGO
   |                        |BCO      |RGI                 |RGO
   |FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG  |OG  |SG        |DL  |DH
   |CODERS
   |CODERSOUT
   |TI1 .. TI5
--------------------------------------------------------------------------------
0   VOICE  Sip  #        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------

[13:49:17] ABILIS_CPX_1:d list:numsip

LIST:NumSip               - IN
     Automatically_generated_CTI_SIP_Numbers_list_(ReadOnly)
     --------------------------------------------------------------------------
     610                     630

We set up the SP parameter to 64000 to keep the available coder pool.

61.4.4.1.2. Communication between the analog phone and the SIP users

Add the following routings:

[17:22:52] ABILIS_CPX_1:a ctir pr:1 poi:sip out:101 cdi:01 sp:64000

COMMAND EXECUTED

[17:23:10] ABILIS_CPX_1:a ctir pr:2 poi:pbx out:sip cdi:'numsip' sp:64000

COMMAND EXECUTED

[16:42:17] ABILIS_CPX_1:d ctir

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Last change: 17/06/2015 10:01:34 CET

---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
   |BCI   |POI |SR      |GI |OUT      |CDI                 |CDO
ACT|NEXT        |LAST       |EEC |T301|CGI                 |CGO
EDT|SP    |SC   |DJ   |MJ   |FMDJ|FMMJ|SDI                 |SDO
   |SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI                 |SGO
   |                        |BCO      |RGI                 |RGO
   |FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG  |OG  |SG        |DL  |DH
   |CODERS
   |CODERSOUT
   |TI1 .. TI5
--------------------------------------------------------------------------------
0   VOICE  Sip  #        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
1   VOICE  Sip  #        #   101       01                   *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
2   VOICE  PBX  #        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------

The PR:1 routing routes toward port 101 (where the analog phone is connected) the calls coming from one of the SIP users and directed to the number 01.

The PR:2 routing routes the calls coming from the Abilis POTS port towards the CTISIP and directed to one number of the NumSip list; the CTISIP translation table will forward the call to the user.

61.4.4.1.3. Communication between the SIP users in “Site 1” and the SIP users in “Site 2

Add routings with the following commands to connect up the PC with Zoiper in “Site 1” and the SIP phone in “Site 2”:

[10:27:19] ABILIS_CPX_1:a ctir pr:3 poi:sip out:site2 cdi:910 sp:64000

COMMAND EXECUTED

[10:29:50] ABILIS_CPX_1:a ctir pr:4 sr:* out:sip cdi:'numsip' sp:64000

COMMAND EXECUTED

[16:33:00] ABILIS_CPX_1:d ctir

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Last change: 17/06/2015 10:01:34 CET

---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
   |BCI   |POI |SR      |GI |OUT      |CDI                 |CDO
ACT|NEXT        |LAST       |EEC |T301|CGI                 |CGO
EDT|SP    |SC   |DJ   |MJ   |FMDJ|FMMJ|SDI                 |SDO
   |SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI                 |SGO
   |                        |BCO      |RGI                 |RGO
   |FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG  |OG  |SG        |DL  |DH
   |CODERS
   |CODERSOUT
   |TI1 .. TI5
--------------------------------------------------------------------------------
0   VOICE  Sip  #        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
1   VOICE  Sip  #        #   101       01                   *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
2   VOICE  PBX  #        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
3   VOICE  Sip  #        #   site2     910                  *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
4   VOICE  #    *        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------

We set up the SP parameter to 64000 to keep the available coder pool.

The PR:3 routing routes towards the Site2 cluster the calls coming from SIP users and directed to the number 910.

The PR:4 routing routes towards the CTISIP the calls coming from any cluster and directed to one of the numbers of the NumSip list; the CtiSip translation table will forward the calls to the user.

61.4.4.2. Abilis CTI Routing of “Site 1 ” using subaddress called field

Add the following command for enable routing using the subaddress called field:

[10:39:13] ABILIS_CPX_2:s p ctisip route-by-sd:yes

COMMAND EXECUTED

Add the following command for change CTIR Routing:

[10:39:13] ABILIS_CPX_2:s ctir pr:0 sdo:zoiper

COMMAND EXECUTED

[16:42:17] ABILIS_CPX_1:d ctir

Last change: 29/07/2015 10:01:34 CET

---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
   |BCI   |POI |SR      |GI |OUT      |CDI                 |CDO
ACT|NEXT        |LAST       |EEC |T301|CGI                 |CGO
EDT|SP    |SC   |DJ   |MJ   |FMDJ|FMMJ|SDI                 |SDO
   |SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI                 |SGO
   |                        |BCO      |RGI                 |RGO
   |FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG  |OG  |SG        |DL  |DH
   |CODERS
   |CODERSOUT
   |TI1 .. TI5
--------------------------------------------------------------------------------
0   VOICE  Sip  #        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    ZOIPER
--------------------------------------------------------------------------------

The match for CTIR Routing in this example is SDO (The SIP user "Zoiper") but not CDO (SIP number).

[Note]Note

If SDO does not match any SIP user then it uses the matching with CDO.

61.4.4.3. Abilis CTI Routing of “Site 2

61.4.4.3.1. Communication between the SIP users in “Site 2” and the SIP users in “Site 1

The example is similar to the configuration of the Abilis of the “Site 1”; type the following commands:

[10:39:13] ABILIS_CPX_2:a ctir pr:0 poi:sip out:site1 cdi:610 sp:64000

COMMAND EXECUTED

[10:40:10] ABILIS_CPX_2:a ctir pr:1 sr:* out:sip cdi:'numsip' sp:64000

COMMAND EXECUTED

[10:40:17] ABILIS_CPX_2:d ctir

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Last change: 17/06/2015 10:01:34 CET

---+------+-----------------+---------+--------------------+--------------------
PR |[DESCR]
   |BCI   |POI |SR      |GI |OUT      |CDI                 |CDO
ACT|NEXT        |LAST       |EEC |T301|CGI                 |CGO
EDT|SP    |SC   |DJ   |MJ   |FMDJ|FMMJ|SDI                 |SDO
   |SPOUT |SCOUT|DJOUT|MJOUT|LCS |LCST|SGI                 |SGO
   |                        |BCO      |RGI                 |RGO
   |FMRLY |FAXSP|MODSP|FMLVL|ECM |UDT |IG  |OG  |SG        |DL  |DH
   |CODERS
   |CODERSOUT
   |TI1 .. TI5
--------------------------------------------------------------------------------
3   VOICE  Sip  #        #   site1     610                  *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------
4   VOICE  #    *        #   Sip       'NumSip'             *
    NO           ANY         NO   Dft  *                    *
    64000  Sys   Sys   Sys   Sys  Sys  *                    *
--------------------------------------------------------------------------------


[13:49:17] ABILIS_CPX_2:d list:numsip

LIST:NumSip               - IN
     Automatically_generated_CTI_SIP_Numbers_list_(ReadOnly)
     --------------------------------------------------------------------------
     910

Like the previous chart, the SP parameter is set at 64000 to keep the available coder pool.

The PR:0 routing routes toward the “Site1”cluster the calls coming from SIP users and directed to the number 610.

The PR:1 routing routes toward the CTISIP the calls coming from any cluster and directed to one of the numbers of the NumSip list; the CTISIP translation table will forward the calls to the user.
