A “Cluster” identifies a connection, used to transport compressed phone calls, between two Abilis. Each cluster is identified with a clear label registered in the Abilis configuration.

The following commands to manage the CTI Clusters use:

a cticl id:xx [par:value] : adds a new CTI Cluster
s cticl id:xx [par:value] : sets a CTI Cluster
c cticl id:xx : clears a CTI Cluster
d cticl : displays the CTI Cluster table

The d cticl ? command shows all available parameters.

The example below shows how to add the cluster Abilis2 (the number associated to the cluster is 0123456).

[15:17:02] ABILIS_CPX:a cticl id:Abilis2 descr:Cluster_to_Abilis2 num:0123456

COMMAND EXECUTED

[15:17:32] ABILIS_CPX:d cticl

- Not Saved (SAVE CONF), Not Refreshed (INIT) ---------------------------------
Configured Clusters:6         Activated Clusters:8

---------+----------------------+----+-----+--------+-------------+------------
CLUS:    |[DESCR:]
[ID:]    |NUM-IN-REWRITE:       |SS: |CPO: |RG-IN:  |BUSY-ON-MAX: |CLIP-RULE:
         |NUM:                  |PC: |LCS-GROUP:    |ADDRBOOK-NUM:
         |NUMx:
---------+----------------------+----+-----+--------+-------------+------------
Abilis2  [Cluster_to_Abilis2     NO   NO    DISABLE  NO            PRIVATE
[  1]     ue*                    NO   NONE           NUM
          0123456

Meaning of the most important parameters:

CG-IN-REWRITE

Rewrites the calling number received from the cluster, after NUMx and NUM processing.

RG-IN

Enable/disable management of incoming redirecting [DISABLE, ENABLE].

SS

Enable/disable supplementary services [NO, YES].

CPO

Sets for which direction the Call Path Optimization is allowed [NO: Call Transfer is not sent out and it is ignored in input, IN: Call Transfer is accepted in input but it is not sent out, OUT: Call transfer is sent out but it is ignored in input, BID: Call Transfer is sent out and it is accepted in input].

NUM

Phone number assigned to the CTI cluster. The available values are:

*: the Calling Number offered by CTIR is passed transparently to the device;
#: the Calling Number is not passed to the device;
##: enforces the presentation restricted: the Calling Number is not passed to the device;
nnnn: exactly this number is passed as Calling Number to the device;
nnnn*: the Calling Number received from CTIR is modified by replacing first four digits with nnnn;
nnnn??: similar to nnnn* with the difference that only an exact number of digits as many ? is passed after nnnn;
????: only an exact number of digits as many ? is passed after the nnnn.

NUMx: additional phone number(s) assigned to this cluster.
LCS-GROUP: Last Calling number Service group identifier [NONE, 1..32]
BUSY-ON-MAX: Return BUSY cause when MAXCON or MAXBW are exceeded [NO, IN, OUT, BID]
CLIP-RULE: Specifies the treatment of the CG number for calls TO the cluster (OUTGOING) [PRIVATE, PUBLIC]. If PRIVATE the CG is sent unmodified, if PUBLIC the CG is emptied when PI is set to RESTRICTED.

A list of cluster numbers (NumClus) is automatically generated by the system; it contains the correspondence between Clusters and their respective numbers.

[15:22:55] ABILIS_CPX:d list

Last change: 22/04/2015 14:22:37 CET

Used-Lists:  1     Used-Items:    0     Used-Resources:    80  (byte)
Free-Lists:249     Free-Items: 4000     Free-Resources: 645040 (byte)

 Id Name             Type   Description                Edt St RefN. First Numb
---+----------------+------+--------------------------+---+--+-----+-----+-----
  1 NumClus          CLNUM  Automatically_generated...     R      3     0     1
-------------------------------------------------------------------------------
IN:ISDN Numbers,               XN:X25 NUAs,                CR:CPX resources,
INN:ISDN Numbers Normalized,   XU:X25 UDFs,                EC:CTI Clusters,
IS:ISDN Sub Addresses,         IP:IP Addresses,            MAC:MAC Addresses,
INR:ISDN Numbers Replacements, IR:IP Addresses Ranges,     DN:Dialing Numbers,
IN2T:ISDN Numbers to Text,     IPT:Internet Protocols,     TXT:Text,
CLNUM:CTI Clusters Numbers,    TUP:TCP/UDP ports ranges,
ICAUSE:ISDN Cause codes,       ICMPT:ICMP message Types,   RU:Rules,
OPC:OPC Unique User IDs,                                   MR:Master Rules.
-------------------------------------------------------------------------------

[15:29:34] ABILIS_CPX:d list:NumClus

LIST:NumClus              - CLNUM             - Ref-Numb:3     Items-Numb:1
     Automatically_generated_CTI_Clusters_Numbers_list_(ReadOnly)
     --------------------------------------------------------------------------
     0123456              Abilis2

This list can be used to simplify the structure of the CTI Routings : an unique rule can route all the calls for the Clusters, by verifying the called number configured. See the example in the CTI Routing section further details.

	Caution
	Changes made on the CTI Clusters are not immediately active. To activate them, execute the initialization command init ctisys.

46.4.1. CPO - Call path optimization

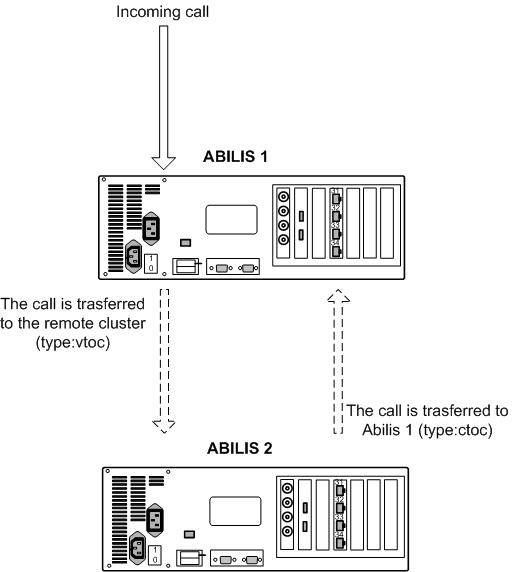

The call path optimization allows to optimize the path of calls. Supposing to have the following scheme:

A call is received by Abilis 1 and the operator routes the call toward Abilis 2. Then the remote user reroutes the call toward the Operator. Without CPO the calls (one from Abilis 1 to Abilis2 and one from Abilis 2 to Abilis 1) remain active and can cause a degradation of the quality.

With CPO active the calls drawed with dotted lines are closed and the initial one remains active.

	Note
	CPO feature is available also for IAX and SIP resources.
