2.1. Abilis Base-D C1037

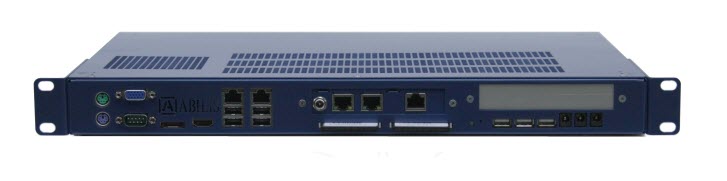

Figure 2.1. Abilis Base-D C1037

Abilis Base-D C1037

Abilis Base-D is an expandable device. Below there are the hardware characteristics of the base unit:

These are the expansions:

2.1.1. Physical and electrical specifications

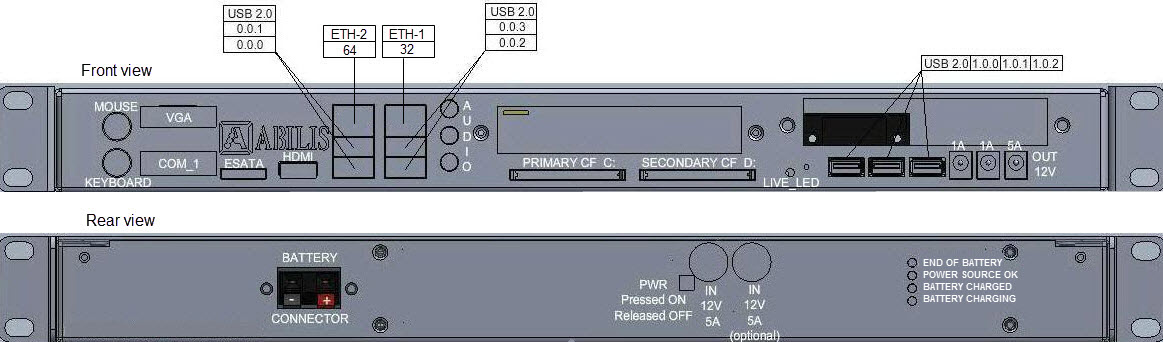

Figure 2.2. The numbering of the physical ports

The numbering of the physical ports

[Warning]Warning

Be extremely careful while inserting the wires from the battery! Avoid short-circuits: they might cause hand-injuries till to battery explosion.

Dimensions[mm]: 440x300x47;

Weight: 2 Kg;

Power supply: 110-230VAC, 150W.
