![[Important]](../images/important.png) | Important |
|---|---|
The Base-D N-3150/N-3160 is supported starting from Abilis firmware version 8.5. |

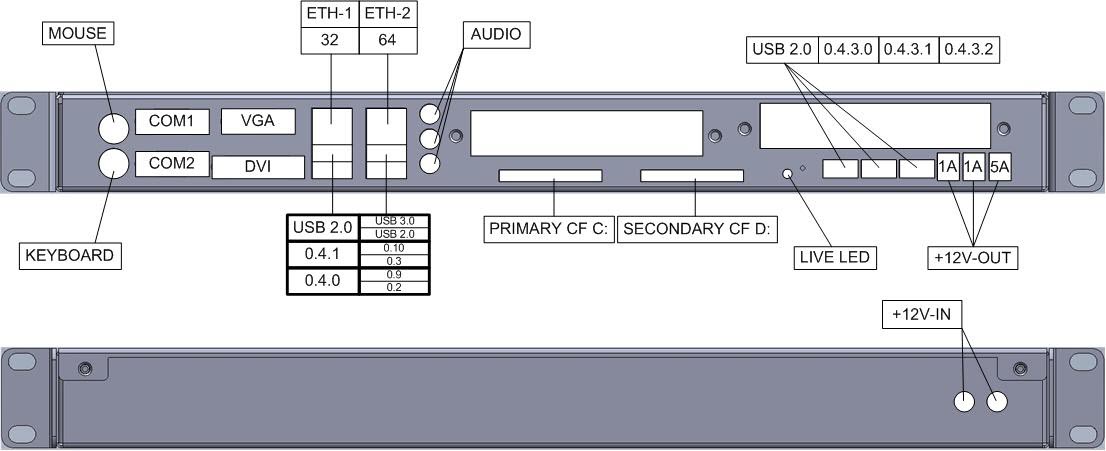

Abilis Base-D N3150/N3160 is an expandable device. Below there are the hardware characteristics of the base unit:
M/B N3150ND3V;
Intel(R) Celeron(R) CPU N3150 @ 1.60GHz;
2048 MB RAM DDR3;
2 Compact-Flash 128MB modules for boot;
2 RS-232 ports;
7 USB ports;
![[Note]](../images/note.png) | Note |
|---|---|
2 USB ports are USB 3.0 and are colored blue to distinguish them from USB 2.0 since they look the same. |
2 GigaEthernet;
3 Power out connector useful to supply UMTS BOX2 or POTSBOX.
These are the expansions:
1 BSE.
BSE device configuration creates 8 BRI and 40 POTS and only the actually installed ones will be running. The not installed ports will appear as "Not running" and may be deactivated and hidden using the S INACT CTIP:xxx command.
The D PCIDEV will show the type and numbers of ports actually present on the installed BSE card using the following scheme:
nickname x-y-x
where
nicknameNickname used to identify the card available in one or more mounting options.
xNumber of BRI ports.
yNumber of on-board POTS ports.
zNumber of POTS ports available through ELTI interface and POTSBOX.
Examples of BSE:
| Important |
|---|---|
In ports that support both USB 3.0 and USB 2.0, when changing
the device type from USB 3.0 to USB 2.0, or vice versa, it is
necessary to change the |
Dimensions[mm]: 440x300x47;
Weight: 2 Kg;
Power supply: 110-230VAC, 150W.
| |  | |
